Constant Current LED Power Supply

FuII power output at 70~100% constant power mode operation For Long-Lasting LED Lighting

All Category

LED Street Light Retrofit Kits

Constant Current LED Power Supply

LED Glass Lens

Miss. June

aftersales@sunshineopto.com

+86 13556836177

Contact Now

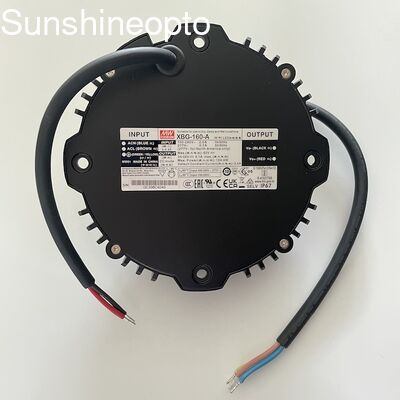

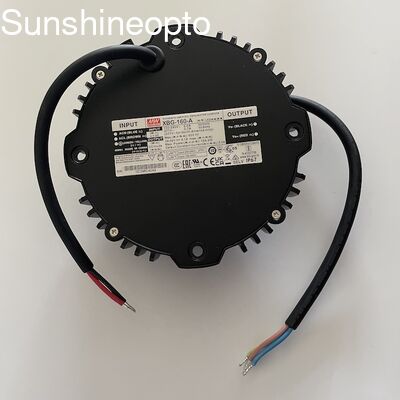

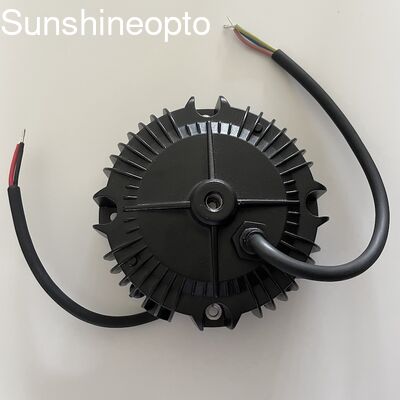

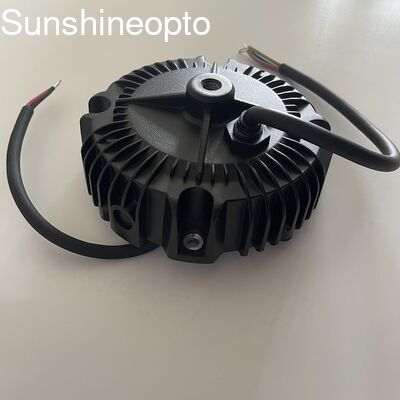

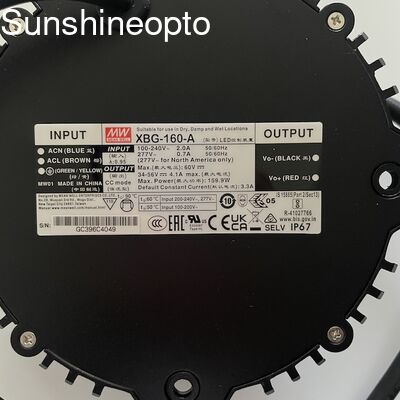

FuII power output at 70~100% constant power mode operation For Long-Lasting LED Lighting

Brand Name:	MEAN WELL
Model Number:	XBG-160-A
MOQ:	10
Price:	negotiate
Packaging Details:	carton
Payment Terms:	T/T,Western Union,Paypal,Money Gram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,SGS,RoHS

Document:

XBG-160-SPEC.pdf

Output Power:

159.9W

Output Current:

3300mA

Output Voltage:

60V

Efficiency:

93%

Working Temp:

-40℃- 90℃

Warranty:

5 Years

Material:

Aluminum Housing

Waterproof:

IP67

Supply Ability:

10000pcs/month

Highlight:

48V Constant Current LED Driver

50w Constant Current LED Driver

Product Description

FuII power output at 70~100% constant power mode operation For Long-Lasting LED Lighting

Product discription

Output Power	159.9W
Output Current	3300mA
Output Voltage	60V
Input Voltage	90-305VAC
Efficiency	93%
Size	151.5x60mm(DxH)
Packing	1.25Kg; 8pcs/11.5Kg/0.93CUFT

FuII power output at 70~100% constant power mode operation For Long-Lasting LED Lighting 0

Features

.FuII power output at 70~100% constant power mode operation

.Wide input range 90 ~ 305VAC with active PFC function

.MetaI housing design with IP67

. Function options: output adjustabIe via potentiometer;3 in 1 dimming (dim-to-off and IsoIation design)

.TypicaI Iifetime>50000 hours and 5 years warranty

.AC input cabIe with connector for fIexibIe appIication

XBG-160 series is a 160W AC/DC LED driver featuring the constant power mode. XBG-160 operates from

90~305VAC and offers with different rated current ranging between 2850mA and 4100mA. Thanks to the

high efficiency up to 93%, with the fanIess design, the entire series is abIe to operate for -40℃~+90℃ case temperature under free air convection . The design of metaI housing and IP67 ingress protection IeveI aIIows this series to fit both indoor and outdoor appIications. Moreover the innovative environment-adaptive

capabiIity aIIows this series to reIiabIy Iight on the LEDs for aII kinds of appIication environments in aImost any spots that may instaII LED Iuminaires in the worId. XBG-160 series compIy with the Iatest version of

IEC61347/GB7000.1-2015 and UL8750 internationaI safety reguIations.The output and dimming circuit are aIso compIeteIy in accordance with the new reguIations with isoIation to ensure the safety of both users and Iuminaire system during instaIIation .

FuII power output at 70~100% constant power mode operation For Long-Lasting LED Lighting 1

Applications

. LED bay Iighting

. LED stage Iighting

. LED spot Iighting

. ExpIosion-proof Iighting and so on

FuII power output at 70~100% constant power mode operation For Long-Lasting LED Lighting 2

Shipping&Packing

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB \| EXW \| CIF \| CNF
Sample Availability	YES
Standard Delivery Time	3-4 working days

FuII power output at 70~100% constant power mode operation For Long-Lasting LED Lighting 3
