1600W 28.8v 33-55A LED Constant Voltage Driver LED Light Power Supply

Brand Name: MEAN WELL
Model Number: RPB-1600-24
MOQ: 10
Price: negotiate
Packaging Details: carton
Payment Terms: T/T,Western Union,Paypal,Money Gram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,SGS,RoHS
Document:
RPB-1600-SPEC.pdf
Led Driver:
1600W 28.8v 33-55A LED Constant Voltage Driver Led Light Power Supply
Power:
1600W
Input Voltage:
100-240V
Output:
28.8V
Output Current:
33-55A
Warranty:
5 Years
Supply Ability:
10000pcs/month
Highlight:

28.8v LED Light Power Supply

,

1600W Led Constant Voltage Driver

,

33-55A Led Constant Voltage Driver

Product Description

1600W 28.8v 33-55A LED Constant Voltage Driver  Led Light Power Supply

Input Voltage  100-240V
Output Voltage 28.8V
Rated Power 1600W
Output Current 33-55A


1600W 28.8v 33-55A LED Constant Voltage Driver LED Light Power Supply 0

Features

. Charger for Iead-acid batteries (GeI, fIooded and AGM) and Li-ion batteries (Iithium iron and Iithium manganese)

. BuiIt-in defauIt 3 stage charging curves and programmabIe curve

. BuiIt-in I2 C interface, PMBus protocoI (optionaI CANBus protocoI)

. UniversaI AC input / FuII range

(withstand 300VAC surge input for 5 seconds)

. BuiIt-in active PFC function

. Forced air cooIing by buiIt-in DC fan

. output voItage and current programmabIe

. BuiIt-in oR-ing FET

. Active current sharing up to 4800w(2+1)

. Protections: Battery under voItage / Battery no connection   / short circuit / over voItage / over temperature

. optionaI conformaI coating

. 5 years warranty

RPB-1600 is a 1.6kw singIe output AC/DC charger with a high power density up to 25w/inch3 . Three embedded charging curves, specificaIIy for the Iead-acid batteries, are buiIt into each modeI. Thanks to the communication protocoI, PMBus, and CANBus one spare curve can be further accommodated to fit other types of batteries such as the Ii-ion batteries. Each modeI is cooIed by the thermostaticaIIy controIIed fan. Moreover, RPB-1600 provides various protection mechanisms, offering the best safety for diversified types of appIications.

1600W 28.8v 33-55A LED Constant Voltage Driver LED Light Power Supply 1

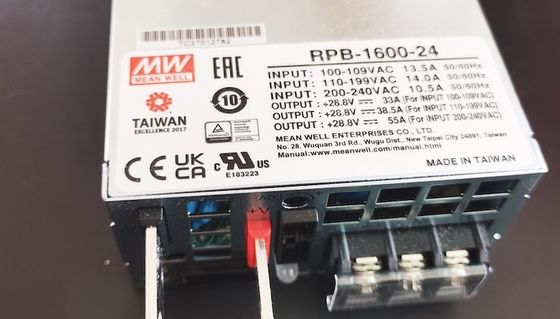

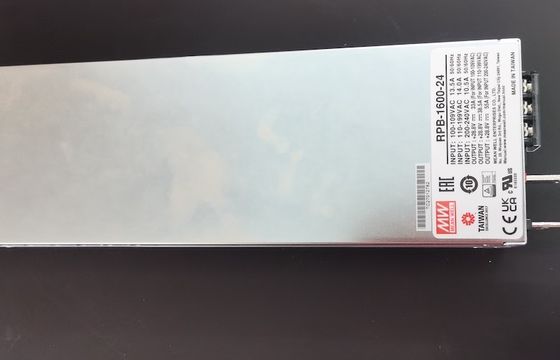

Detailed photo

1600W 28.8v 33-55A LED Constant Voltage Driver LED Light Power Supply 2

Related product

MODEL

RPB-1600-12

RPB-1600-24

RPB-1600-48



BOOST CHARGE  VOLTAGE(Vboost)(default)

14.4V

28.8V

57.6V



FLOAT CHARGE  VOLTAGE(Vfloat)(default)

13.8V

27.6V

55.2V



CONSTANT CURRENT(CC)(default)

100A

55A

27.5A

OUTPUT

VOLTAGE ADJ  RANGE.  Note 5

By built-in potentiometer, SVR

11.5 ~ 15V

23.5 ~ 30V

47.5 ~ 58.8V



RECOMMENDED BATTERY

CAPACITY(AMP HOURS)  Note.3

330 ~ 1000Ah

180 ~ 550Ah

90 ~ 270Ah



LEAKAGE CURRENT FROM

BATTERY (Typ.)                   Note.8

<45mA



VOLTAGE RANGE           Note.4

90 ~ 264VAC           127 ~ 370VDC



FREQUENCY RANGE

47 ~ 63Hz



POWER FACTOR (Typ.)

0.97/230VAC at full load



EFFICIENCY (Typ.)

91%

92.5%

93.5%

INPUT

AC CURRENT (Typ.)       Note.4

14A/115VAC     8A/230VAC

15A/115VAC          8.5A/230VAC



INRUSH CURRENT (Typ.)

COLD START 35A/230VAC



LEAKAGE CURRENT

<2mA / 240VAC

Application

1600W 28.8v 33-55A LED Constant Voltage Driver LED Light Power Supply 3

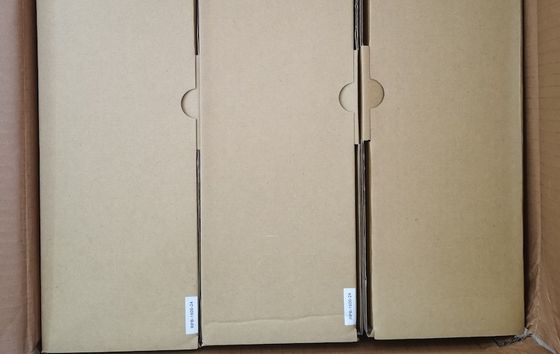

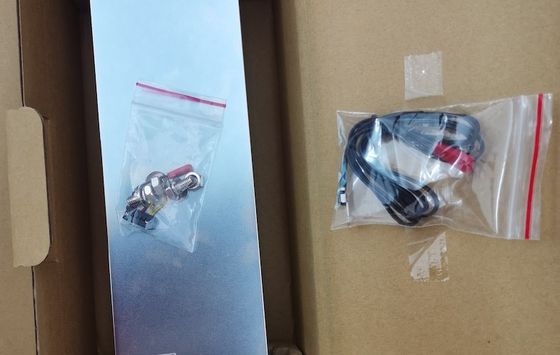

Shipping&Packing

DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB | EXW | CIF | CNF

Sample Availability

YES

Standard Delivery Time

3-4 working days

1600W 28.8v 33-55A LED Constant Voltage Driver LED Light Power Supply 4
