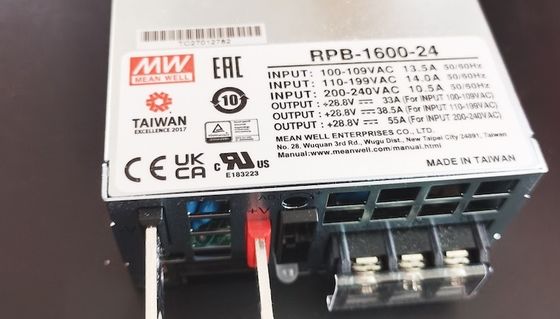

Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver

Brand Name:	MEAN WELL
Model Number:	RPB-1600-24
MOQ:	10
Price:	negotiate
Packaging Details:	carton
Payment Terms:	T/T,Western Union,Paypal,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE,SGS,RoHS

Document:

Power:

1600W

Input Voltage:

90 ~ 264VAC 250 ~ 370VDC

Output Voltage:

28.8V

Output Current:

Efficiency:

92.5%

Warranty:

5 Years

Supply Ability:

10000pcs/month

Highlight:

28.8v LED Light Power Supply

1600W Led Constant Voltage Driver

33-55A Led Constant Voltage Driver

Product Description

Original MEAN WELL RPB-1600-24 24V 1600W 92.5% High Efficiency AC DC LED Driver

Product Overview

MEAN WELL RPB-1600-24 is a genuine 1600W intelligent single output battery charger delivering 24V charging voltage at up to 55A, with built-in 3-stage charging curves for lead-acid (Gel, flooded, AGM) and lithium (LiFePO4, Li-ion) batteries, active PFC, PMBus communication, and a 1U low profile design (300 x 85 x 41mm) for UPS, marine, EV and industrial backup systems.

Specifications

Model No.	RPB-1600-24
Input Voltage	90 ~ 264VAC 250 ~ 370VDC
Output Voltage	28.8V
Rated Power	1600W
Output Current	55A
Efficiency	92.5%
Frequency	47 ~ 63Hz

Key Features

Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve
Built-in I2C interface, PMBus protocol (optional CANBus protocol)
Universal AC input / Full range (withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
Forced air cooling by built-in DC fan
Output voltage and current programmable
Built-in OR-ing FET
Active current sharing up to 4800W (2+1)
Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Related Products

MODEL No.	RPB-1600-12	RPB-1600-24	RPB-1600-48
BOOST CHARGE VOLTAGE(Vboost)(default)	14.4V	28.8V	57.6V
FLOAT CHARGE VOLTAGE(Vfloat)(default)	13.8V	27.6V	55.2V
CONSTANT CURRENT(CC)(default)	100A	55A	27.5A
OUTPUT VOLTAGE ADJ. RANGE Note 5	By built-in potentiometer, SVR 11.5 ~ 15V	By built-in potentiometer, SVR 23.5 ~ 30V	By built-in potentiometer, SVR 47.5 ~ 58.8V
RECOMMENDED BATTERY CAPACITY (AMP HOURS) Note 3	330 ~ 1000Ah	180 ~ 550Ah	90 ~ 270Ah
LEAKAGE CURRENT FROM BATTERY (Typ.) Note 8	<45mA
VOLTAGE RANGE Note 4	90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE	47 ~ 63Hz
POWER FACTOR (Typ.)	0.97/230VAC at full load
EFFICIENCY (Typ.)	91%	92.5%	93.5%
AC CURRENT (Typ.) Note 4	14A/115VAC 8A/230VAC	15A/115VAC 8.5A/230VAC	-
INRUSH CURRENT (Typ.)	COLD START 35A/230VAC
LEAKAGE CURRENT	<2mA / 240VAC

Shipping Informations

Shipping Method	Delivery Time
DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB \| EXW \| CNF
Sample Availability	YES
Standard Delivery Time	3-4 working days

FAQ

Q:What protections does the RPB-1600-24 offer?

A:The RPB-1600-24 includes battery under-voltage protection, battery no-connection detection, short circuit, over voltage (31.5-37.5V with shut-down and re-power recovery) and over temperature protections, plus a battery leakage current of less than 45mA for safe standby operation.

Q:What is the efficiency of the RPB-1600-24?

A:The typical efficiency of the RPB-1600-24 is 92.5% at full load, and the power factor is 0.97 typical at 230VAC under full load thanks to the built-in active PFC function, which reduces energy loss and heat in continuous charging applications.

Q:What are the operating temperature limits of the RPB-1600-24?

A:The RPB-1600-24 operates over an ambient temperature range of -30°C to +70°C with output derating at higher temperatures, and it can be stored at -40°C to +85°C. It also features temperature compensation of -3mV per degree Celsius per cell.
