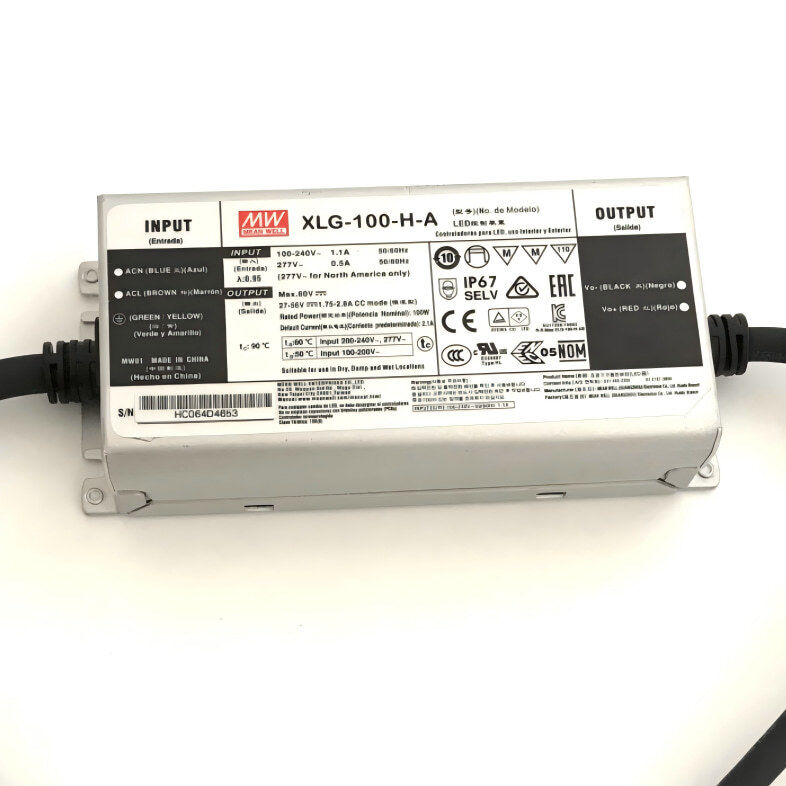

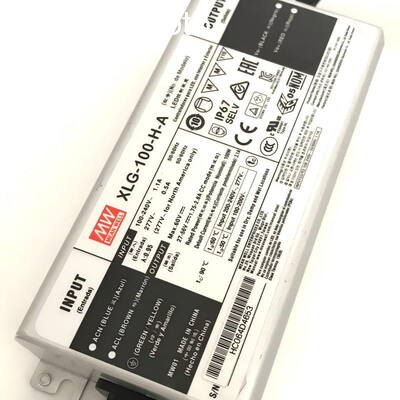

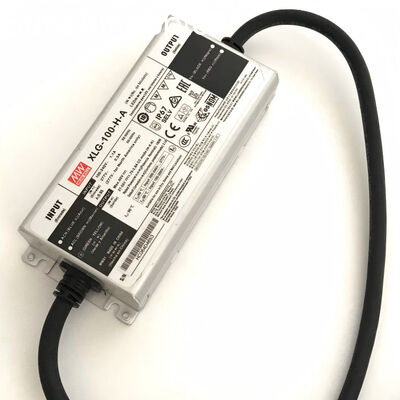

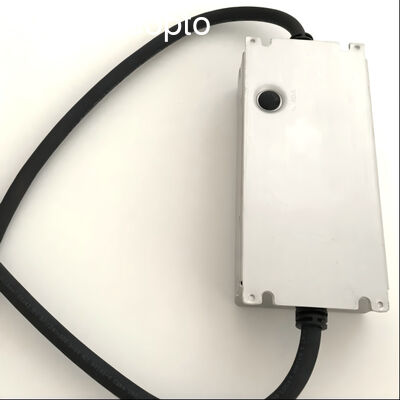

100W IP67 Waterproof Constant Power LED Power Supply with Adjustable Output Current

MODEL

XLG-100-12-A

XLG-100-24-A

DC VOLTAGE

12V

24V

CONSTANT CURRENT REGION Note.2

8.4~ 12V

16.8~ 24V

RATED CURRENT  (Default)

8A

4A

RATED POWER

96W

96W

RIPPLE & NOISE (max.)  Note.3

150mVp-p

240mVp-p

CURRENT ADJ RANGE

Adjustable for A-Type only (via the built-in potentiometer)

4 ~ 8A

2~4A

OUTPUT

VOLTAGE TOLERANCE  Note.4

±3 .0%

±2 .0%

LINE REGULATION

±0 .5%

±0 .5%

LOAD REGULATION

±2%

±1%

SETUP, RISE TIME    Note.6

500ms , 100ms/230VAC ,   1200ms , 100ms/115VAC

HOLD UP TIME (Typ.)

12ms/ 230VAC  12ms/ 115VAC

VOLTAGE RANGE          Note.5

100 ~ 305VAC          142 ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR

PF≥0 .97/115VAC , PF≥0 .95/230VAC , PF≥0 .92/277VAC@full load

TOTAL HARMONIC DISTORTION

THD< 10%(@load≥50%/115VAC ,230VAC; @load≥75%/277VAC)

INPUT

EFFICIENCY (Typ.)

92%

92%

AC CURRENT

1. 1A / 115VAC      0.5A / 230VAC      0.42A/277VAC

INRUSH CURRENT(Typ.)

COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER

8units (circuit breaker of type B) / 14 units  (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0 .75mA / 277VAC

NO LOAD

POWER CONSUMPTION

No load power consumption <0 .5W(for standard version)

MODEL

XLG-100-L-A

XLG-100-H-A

RATED CURRENT  (Default)

700mA

2100mA

RATED POWER

100W

100W

CONSTANT CURRENT REGION

71 ~ 142V

27 ~ 56V

FULL POWER CURRENT RANGE

700~1050mA

1750~2780mA

OUTPUT

OPEN CIRCUIT VOLTAGE (max.)

149V

60V

CURRENT ADJ. RANGE

350~1050mA

875~2780mA

CURRENT RIPPLE

3.0%(@rated  current)

CURRENT TOLERANCE

±5%

SET UP TIME

500ms/230VAC , 1200ms/115VAC

VOLTAGE RANGE          Note.5

100 ~ 305VAC          142VDC ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF≥0 .97 / 115VAC , PF≥0 .95 / 230VAC , PF≥0 .92 / 277VAC at full load

(Please refer to "Power Factor Characteristic" section)

TOTAL HARMONIC DISTORTION

THD< 10% (@ load≥50% at 115VAC/230VAC ,@load≥75%  at  277VAC)

Please refer to “TOTAL HARMONIC DISTORTION (THD) ” section

INPUT

EFFICIENCY (Typ.)

92.5%

91%

AC CURRENT (Typ.)

1. 1A / 115VAC          0.5A / 230VAC          0.42A / 277VAC

INRUSH CURRENT(Typ.)

COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. NO. of PSUs on 16A CIRCUIT BREAKER

8 unit(circuit breaker of type B) / 14 units(circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0 .75mA / 277VAC

STANDBY

POWER CONSUMPTION

Standby power consumption <0 .5W for AB-Type(Dimming OFF)(for standard version)
