Bulk 150W LED Driver with Wide Input Range 100-305VAC and 5 Years Warranty

MODEL

XLG-150-12-A

XLG-150-24-A

DC VOLTAGE

12V

24V

CONSTANT CURRENT REGION Note.2

8.4~ 12V

16.8~ 24V

RATED CURRENT   (Default)

12.5A

6.25A

RATED POWER

150W

150W

RIPPLE & NOISE (max.)  Note.3

150mVp-p

240mVp-p

CURRENT ADJ. RANGE

Adjustable for A-Type only (via the built-in potentiometer)

6.5~ 12.5A

3.2~ 6.25A

OUTPUT

VOLTAGE TOLERANCE  Note.4

±3.0%

±2.0%

LINE REGULATION

±0.5%

±0.5%

LOAD REGULATION

±2%

±1%

SETUP, RISE TIME    Note.6

500ms, 100ms/230VAC,   1200ms, 100ms/115VAC

HOLD UP TIME (Typ.)

10ms/ 230VAC  10ms/ 115VAC

VOLTAGE RANGE          Note.5

100 ~ 305VAC          142 ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR

PF≥0.97/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC@full load

TOTAL HARMONIC DISTORTION

THD< 10%(@load≥50%/115VC,230VAC; @load≥75%/277VAC)

INPUT

EFFICIENCY (Typ.)

91.5%

93%

AC CURRENT

1.8A / 115VAC      1.0A / 230VAC      0.8A/277VAC

INRUSH CURRENT(Typ.)

COLD START 50A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER

4 units (circuit breaker of type B) / 8 units  (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC

NO LOAD

POWER CONSUMPTION

No load power consumption <0.5W(for standard version)

MODEL

XLG-150-L-A

XLG-150-M-A

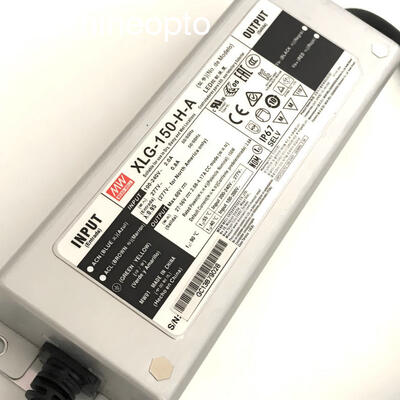

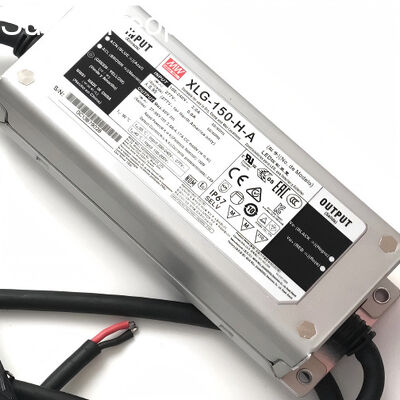

XLG-150 -H-A

RATED CURRENT    (Default)

700mA

1400mA

2800mA

RATED POWER

150W

150W

150W

CONSTANT CURRENT REGION

120 ~214V

60 ~ 107V

27 ~ 56V

FULL POWER CURRENT RANGE

700~1050mA

1400~2100mA

2680~4170mA

OUTPUT

OPEN CIRCUIT VOLTAGE (max.)

225V

115V

60V

CURRENT ADJ. RANGE

Adjustable for A/AB-Type only (via the built-in potentiometer)

350~1050mA

700~2100mA

1400~4170mA

CURRENT RIPPLE

4.0%(@ full load)

3.0%(@ full load)

3.0%(@ full load)

CURRENT TOLERANCE

±5%

SET UP TIME

500ms/230VAC, 1200ms/115VAC

VOLTAGE RANGE          Note.5

100 ~ 305VAC          142VDC ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF≥0.97 / 115VAC, PF≥0.95 / 230VAC , PF≥0.92 / 277VAC at full load

(Please refer to "Power Factor Characteristic" section)

TOTAL HARMONIC DISTORTION

THD< 10% (@ load≥50% at 115VAC/230VAC ,@load≥75%  at  277VAC)

Please refer to “TOTAL HARMONIC DISTORTION (THD)” section

EFFICIENCY (Typ.)

93%

92.5%

92%

INPUT

AC CURRENT (Typ.)

1.8A / 115VAC      1.0A / 230VAC      0.8A/277VAC

INRUSH CURRENT(Typ.)

COLD START50A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. NO. of PSUs on 16A CIRCUIT BREAKER

4 unit(circuit breaker of type B) / 8 units(circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC

STANDBY POWER

CONSUMPTION         Note.14

Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version)
