Product Details:
Payment & Shipping Terms:
|
| Product Name: | IP67 Waterproof 3030 SMD LED Module 50W High Bay LED Module | Model No.: | SUN- SL130X130-64-90 |
|---|---|---|---|
| Beam Angle: | 90 Degree | LENS Size: | 130x130x6.9mm |
| Material: | Optical Grade PC | LED CHIP: | 3030 SMD LED, 140-150lm/w@ 150mA,6v |
| Tranmittance: | 91% | Application: | High Bay Light/Street Light |
| PCB Size: | 115.59x115.59x1.5mm | Circuit For PCB Board: | 8 Series 8 Parallel |
| High Light: | led lighting module,street light led retrofit |
||
IP67 Waterproof 3030 SMD LED Module 50W High Bay LED Module 90 Degree
Product Feature:
|
1, Product Name |
IP67 Waterproof 3030 SMD LED Module 50W High Bay LED Module 90 Degree |
|
2, Model No |
SUN- SL130X130-64-90 |
|
3, Main parts |

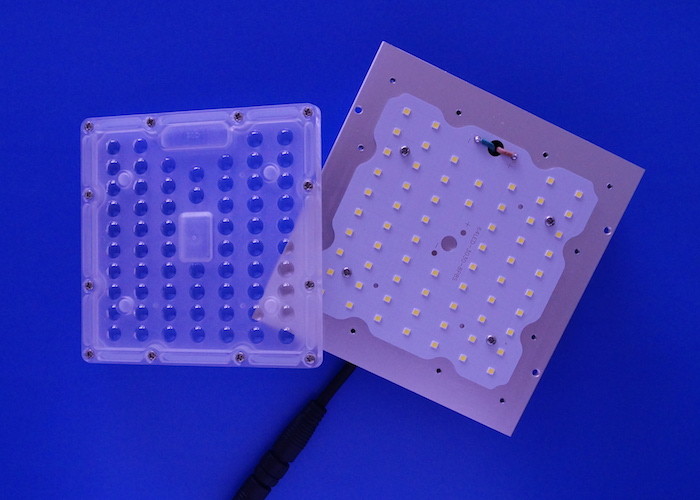

64 Array lens , silicon gasket+PCB+LED |
|
4, Lens Material |
PC |
|
5, Lens size |
130x130mm |
|
6, Transmittance |
91% |
|
7,LEDS |
3030 SMD LED, 140-150lm@ 150mA,6v |
|
8, Sample |
3-4 work day |
|
9, Delivery |
5-7 work days for 10000 sets |
|
10, Angle |
120 degree/ TYPE4 |
|
11, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
12, Main market |
Europe, South America,North America, Asia |
Related products:
|
Model No. |
Power ( Watt) |
Angle(degree) | Lens size(mm) | PCB size(mm) | Circuit |
|
SUN- SL130X130-64-80x150 |
50W | 80x150 | 130x130 |
115.59x115.59x1.5 |
8S8P |
|
SUN-LD236x70-5050-30/60/90 |
50-100W | 30/60/90 | 236x70 |
217.7x43.5x1.5 |
2S14P |
|
SUN-LD270X75-5050-130 |
50-100W | 130 | 270x75 |
250x56x1.5 |
2S14P |
|
SUN-LD3x12-3030-60x140 |
30W | 60x140 | 250x74 |
228x53x1.5 |
6S6P |
| SUN-SL72-3030-60/90 | 50W | 60/90 | 250X74 | 226X57.9X1.5 | 7S8P |
|
SUN-LD4x12-3030-90x90 |
40W | 90x90 | 250x74 |
228x53x1.5 |
6S8P |
|
SUN-SL56W-3030-155x80 |
50W | 80x1550 |
256.6x78.6 |
233x55x1.5 |
7S8P |
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
LENS Dimensions :
