12V 5050 Led Street Light Module 15 Watt Optical Grade PC Lens 2 Years Warranty

Name: 12V 5050 Led Street Light Module 15 Watt Optical Grade PC Lens 2 Years Warranty
Brand: Sunshine Opto-electronics Enterprise Co.,ltd
SKU: SUN-LD2X6-5050-143*48
Price: 14.80 USD
Availability: InStock

Brand Name:	SunshineOpto
Model Number:	SUN-LD2X6-5050-143*48
MOQ:	20
Price:	need to negotiation
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union, MoneyGram,PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS/ROHS

Product Kits:

Led Lens With Silicon Gasket ,pcb Welding 5050 Leds

Lens Size:

173*71.4mm

Lens Angle:

143*48 Degree

PCB Size:

145*47*1.5 Mm

PCB Circuit:

4 Series 3 Parallel

Match Leds:

5050 Led

Packaging Details:

20 sets/Carton .

Supply Ability:

5000 sets per Month

Highlight:

led light replacements

street light led retrofit

Product Description

12V 5050 Led Street Light Module 15W

1,The module uses high-quality 5050 leds and we provide 2 years warranty .

2,The whole module can support 15-30watt ,The luminous efficiency can reach 130-150lm/watt ,

3,The size of this module is 173*71.4 mm ,It's more common and can be used to replace old products

Quick Detail :

Model No.:	SUN-LD2X6-5050-14348*
Angle:	14348 degree ,*
Lens Size:	17371.4 mm*
PCB Size:	145471.5 mm
Lens Material:	Optical grade PC
Circuit:	4 series 3 parallel
LED:	12 pcs 5050 SMD LED

Technical Parameters :

Model No.		SUN-LD2X6-5050
Power(W)		20
Voltage(Vf/V)		8.31
Current(If/mA)		2400
Color Temp Tc(K)		5500
Efficiency (lm/W)	Without lens	176.19
	with lens	160.16
Luminous Flux (φv/lm)	without lens	3514
	with lens	3198
Color Index(Ra)		>70
Lens beam angle		6060,12955,13555,14370, 14583,15757,143*48 degree
Wick		12 pcs 5050 leds
Protection level		IP66
Working temperature(℃)		-80
storage temperature(℃)		-95
Server Life(H)		50000

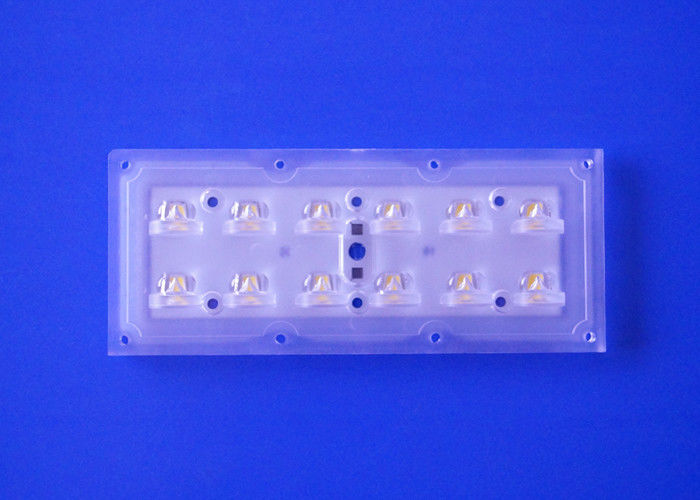

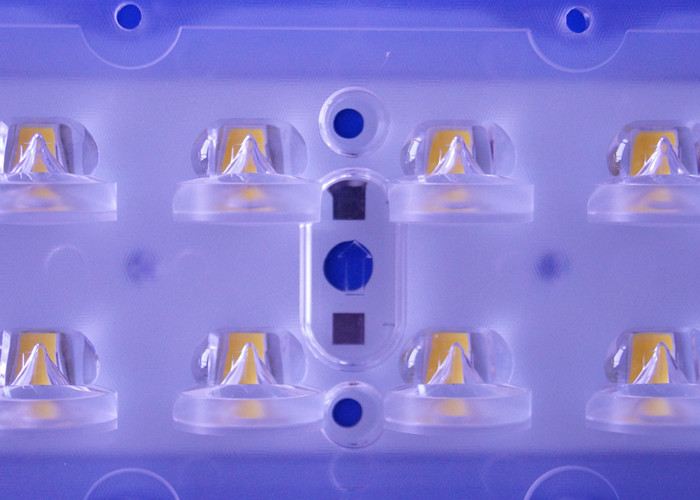

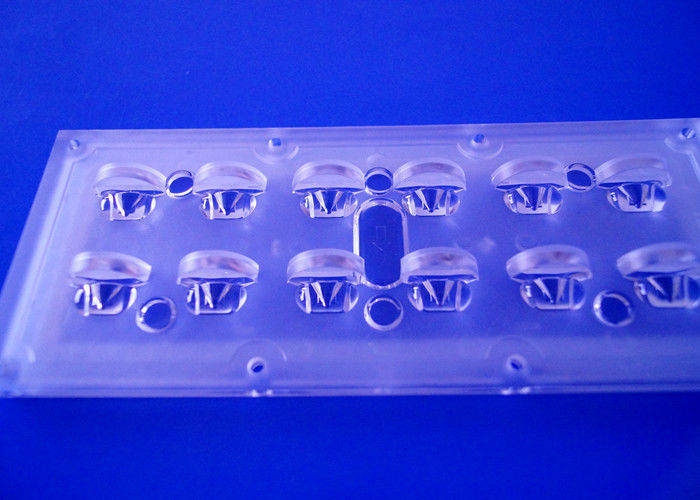

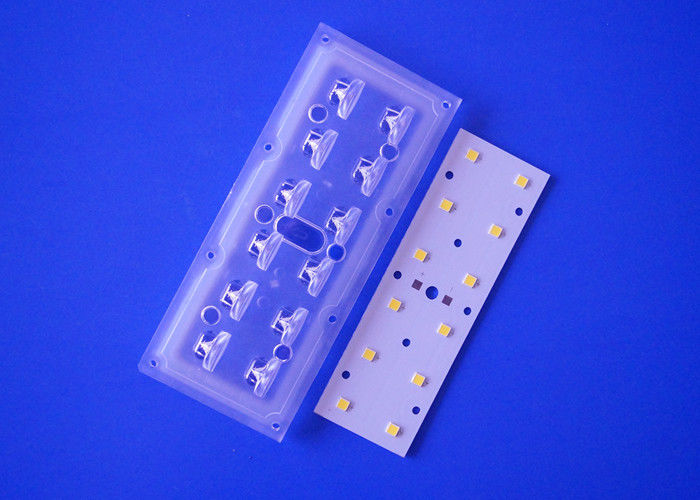

Product Picture :

12V 5050 Led Street Light Module 15 Watt Optical Grade PC Lens 2 Years Warranty 0

We provide led street light parts, you need to assemble it yourself, if you need us to provide assembly, we need to charge the assembly fee .

Light distribution :

Application :

Led Street light ,high way lamp ,etc .

FAQ

Q1. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q2. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available
