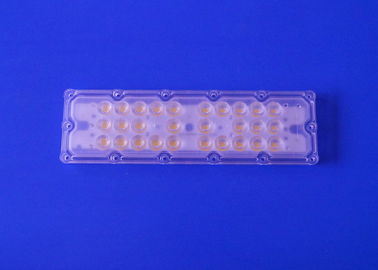

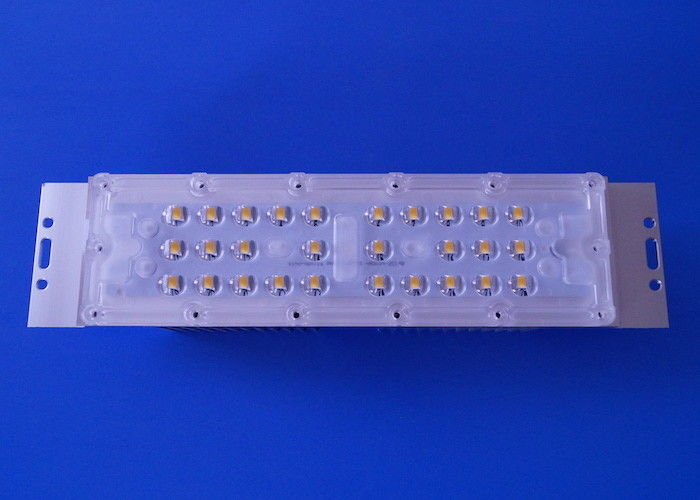

Urban LED Street Light Module 28 LED Points 5050 SMD Optical Grade PC Material

Urban LED Street Light Module 28 LED Points 5050 SMD Optical Grade PC Material
Urban LED Street Light Module 28 LED Points 5050 SMD Optical Grade PC Material

Large Image :  Urban LED Street Light Module 28 LED Points 5050 SMD Optical Grade PC Material

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: SUN-LD236X70-5050-90
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Cartons
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Detailed Product Description
Product Name: 100W Linear Stadium Lighting Module 28 LED Points 5050 SMD 30 / 60 / 90 Degree Model No.: SUN-LD236X70-5050-90
Beam Angle: Type5 LENS Size: 236X70X8.3mm
Material: Optical Grade PC LED CHIP: 5050 SMD LED
Tranmittance: 91% Application: High Bay Light/Street Light
PCB Size: 218x44x1.5mm Circuit For PCB Board: 2 Series 14 Parallel. 48v Output
High Light:

street light led retrofit

,

led light replacements

 30 / 60 / 90 / 80x150 / 90x120 / 40x110 Degree lens Urban Street Landscape 28 LED Points 5050 SMD LED module

Quick Detail:

Model No:SUN-LD236X70-5050-90
Material: PC
Beam Angle : 90 degree
Lens size:236X70X8.3mm
PCB size:218x44x1.5mm
Circuit: 2 series 14 parallel
Match LED: 5050 SMD LED
Small footprint, high light output


Features :

  1. This SKD 28 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 50w, 60w, 70w, 80w, 90w, 100w and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 80X150/ 90/60/90X120/130 degree/ TYPE3 and TYPE4.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.



Urban LED Street Light Module 28 LED Points 5050 SMD Optical Grade PC Material 0










Specifications:


1, Product Name

30 / 60 / 90 / 80x150 / 90x120 / 40x110 Degree lens Urban Street Landscape 28 LED Points 5050 SMD LED module

2, Model No

SUN-SL236X70-5050-90

3, Main parts

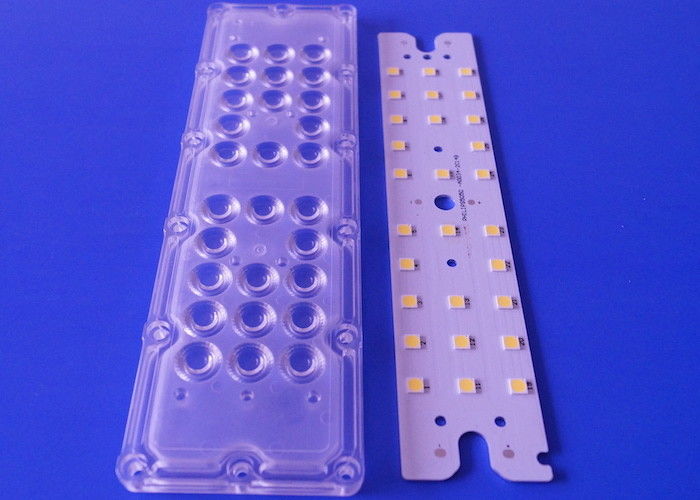

28 Array lens , silicon gasket+PCB+ 5050SMD LED+heat sink

4, Lens Material

PC

5, Lens size

236X70MM

6, Transmittance

91%

7,LEDS

5050 SMD,24V, 160mA

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

90 Degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days

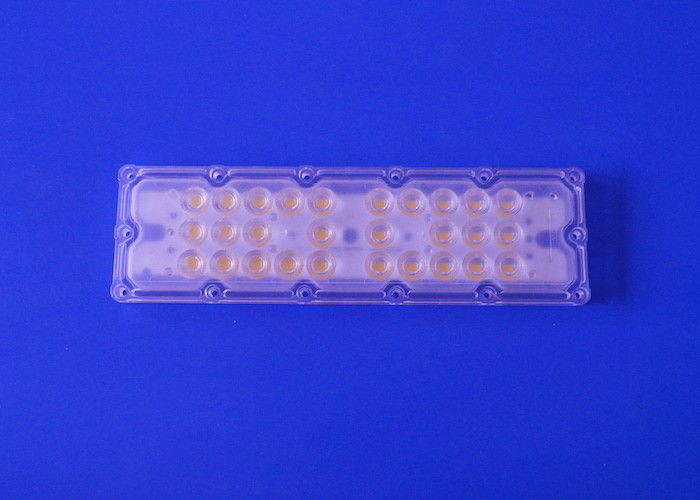

LENS Dimensions :
Urban LED Street Light Module 28 LED Points 5050 SMD Optical Grade PC Material 1

Dimensions for silicon gasket:
Urban LED Street Light Module 28 LED Points 5050 SMD Optical Grade PC Material 2
Beam pattern:
 Urban LED Street Light Module 28 LED Points 5050 SMD Optical Grade PC Material 3

PCB board size:
Urban LED Street Light Module 28 LED Points 5050 SMD Optical Grade PC Material 4
 Urban LED Street Light Module 28 LED Points 5050 SMD Optical Grade PC Material 5
