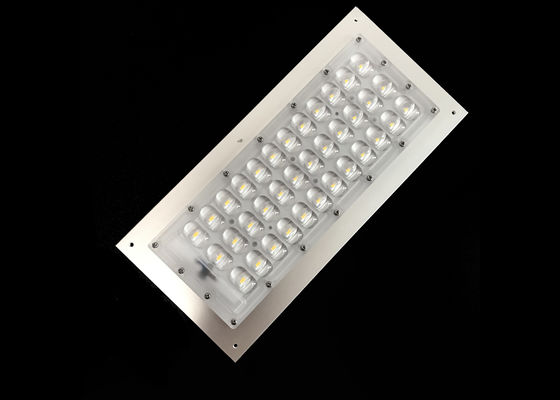

120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB

120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB

SMD5050 LED Street Light Module

120W LED Street Light Module

18 Parallel PCB LED Module

Place of Origin:

Shenzhen,China

Brand Name:

SunshineOpto

Certification:

SGS/ROHS

Model Number:

SUN-LD270X104-36H1-5050

Contact Us

Request A Quote
Product Details
Product Kits:
Led Lens With Silicon Gasket ,pcb Welding 5050 Leds+HEAT SINK
Lens Size:
270*104 Mm
Lens Angle:
Type Iii-m Degree
PCB Size:
255*89mm
PCB Circuit:
2 Series 18 Parallel
Match Leds:
3030 Led
Payment & Shipping Terms
Minimum Order Quantity
20
Price
need to negotiation
Packaging Details
20 sets/Carton .
Delivery Time
5-8 working days
Payment Terms
T/T, Western Union, MoneyGram,PayPal
Supply Ability
5000 sets per Month
Product Description



120W 36 Points 5050 LED Street Light Module TYPE III-M Degree

Product Information
120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB 0 Module No SUN-LD270X104-36H1-5050
Lens Angle TYPE III/ TYPE IV
Lens Size 270X104mm
PCB Size 255X89mm
PCB Circuit 2 series 18 parallel
Kits led lens+silicon gasket+pcb welding leds+heat sink



Product Description:

120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB 1

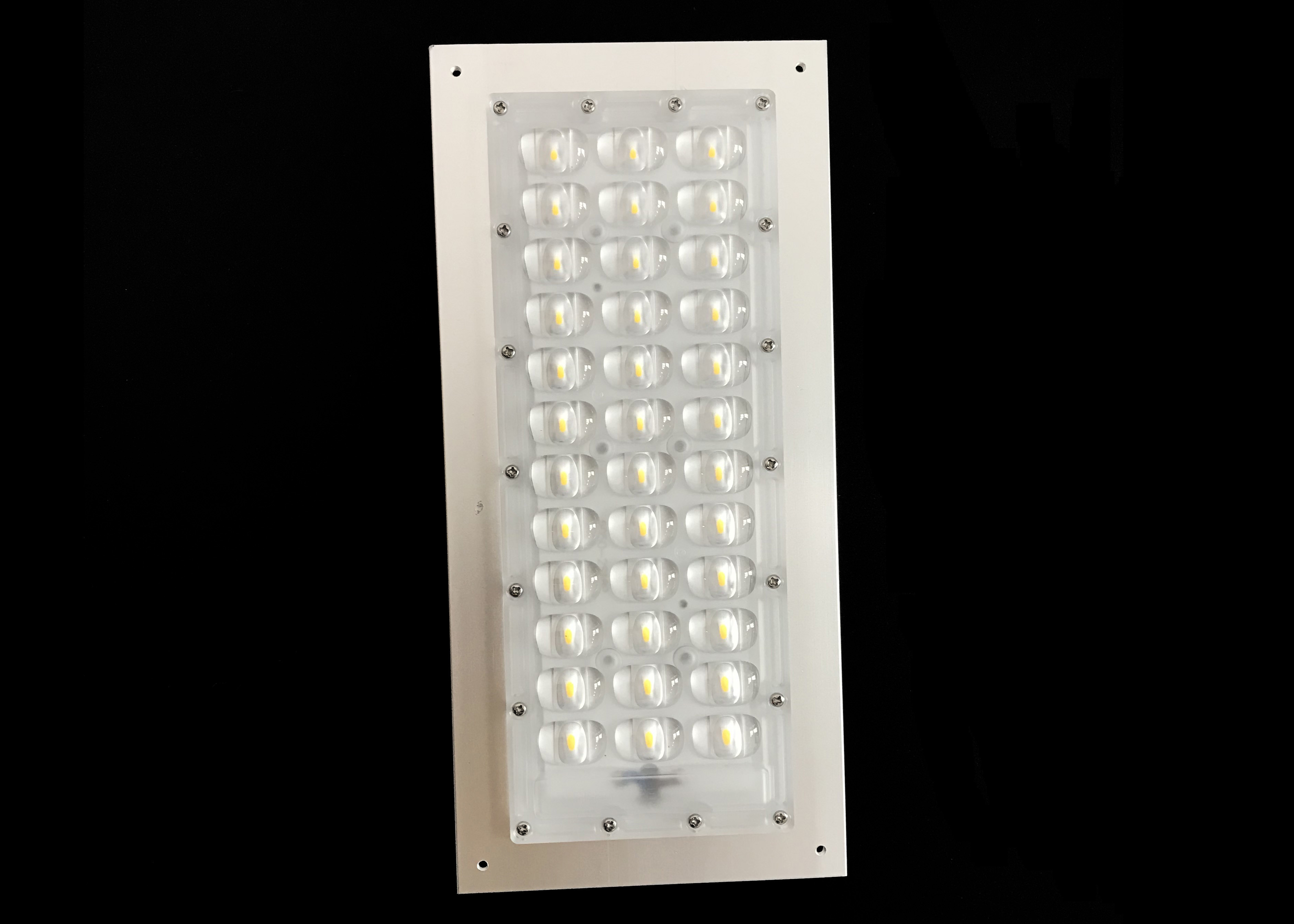

LED Board Details



PCB Size :255*89 mm

PCB Circuit :2 series 18 parallel for smd 5050 leds.



This module we have 2 kinds of led board for choose:

1, 144 points smd 3030 led board support 100W,



2, 36 points smd 5050 led board, support 120W.

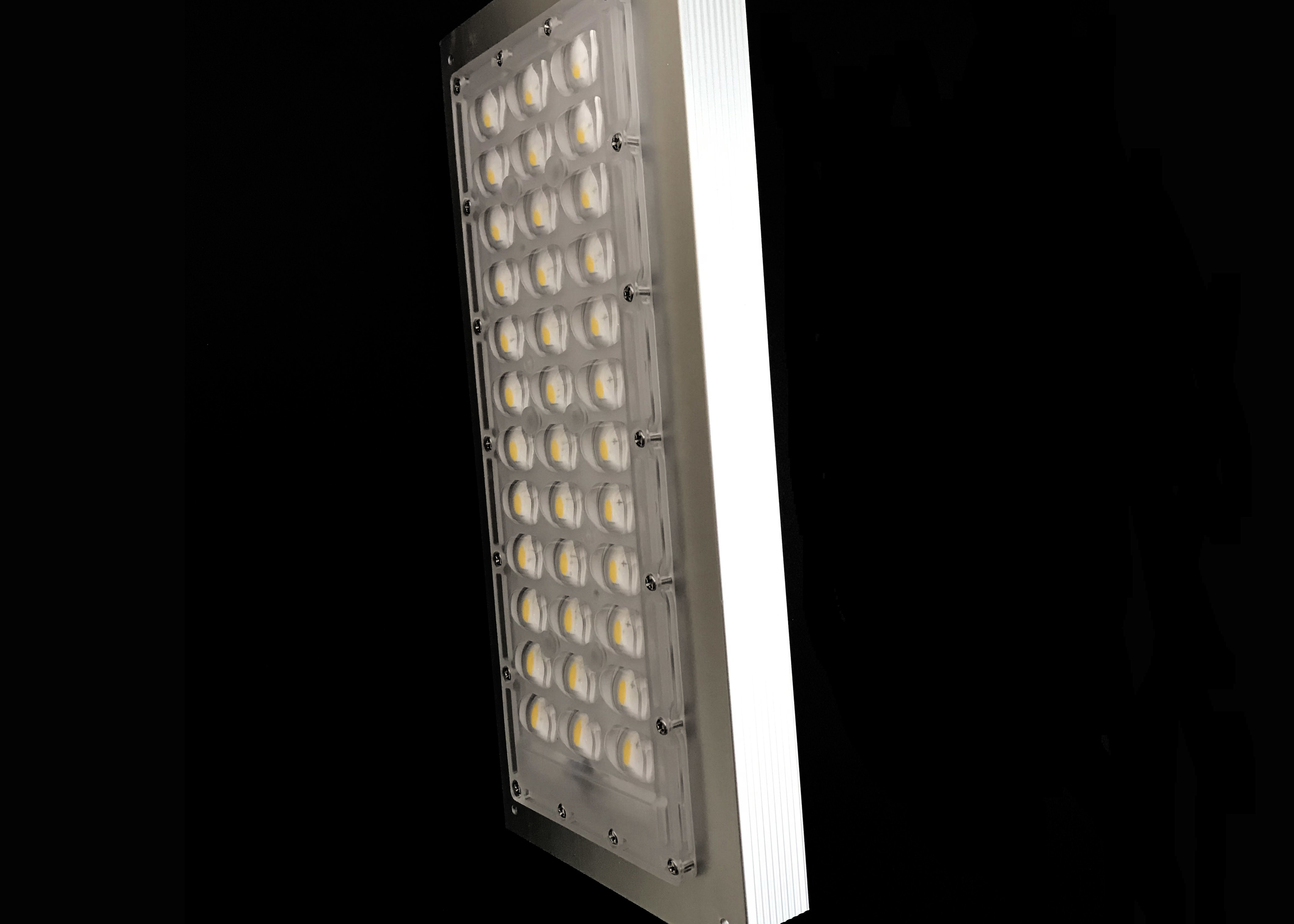

Led Lens Details



Lens Size :270x104mm

Lens Angle : TYPE III, TYPE IV, TYPE V degree

Lens material :optical grade PC

120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB 2





Led lens drawing: (TYPE III)



120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB 3

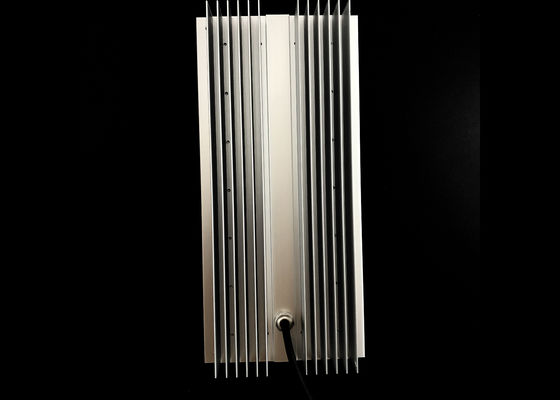

Heat sink details:

Size: L 310*W 140*H 38mm,

Support maximum 120w cooling.

120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB 4 120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB 5





Heat sink drawing:



120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB 6

















Test result:



Model No. SUN-LD270X104-36H1-5050
Power (W) 40 50 100
Voltage (Vf/V) 47 47.5 48
Current (If/mA) 850 1050 2080
Color Temp Tc ( K) 5000 5000 5000
Efficiency (lm/W) Without lens 186 175 142
With lens 172 163 127
Luminous Flux (⏀v/lm) Without lens 7433 8774 14200
With lens 6895 8150 12700
Color Index (Ra) 70
Lens beam angle TYPE III degree
Wick 36pcs 5050 Led
Working temperature(℃) -30-50
Storage temperature(℃) -30-65
Server Life (H) 50000
