Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
LED Street Light Module
Created with Pixso. 90 Degree Led Street Light Module Optical PC 50w SMD3030 Silicon Gasket
name
  • name
  • name
  • name
  • name
  • name

90 Degree Led Street Light Module Optical PC 50w SMD3030 Silicon Gasket

Brand Name: Sunshineopto
Model Number: SUN-SL80-3030-90
MOQ: 1
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
SGS,ROHS
Product Name:
50w SMD 3030 Led Module , Street Light Module For Street Lamp
Model No.:
SUN-SL80-3030-90
Angle:
90 Degree
Lens Dimension:
234x70x6.9mm
Lens Material:
Optical Grade PC
LED CHIP:
3030 SMD LED, 150-160lm/w 150mA,6v
Tranmittance:
91%
Accessory:
Gasket And Lens+PCB+ 3030SMD LED+Heat Sink
PCB Size:
219.8x53.8x1.5mm
PCB Circuit:
8 Series 10 Parallel
Packaging Details:
Cartons
Supply Ability:
5000pcs/months
Highlight:

90 Degree Led Street Light Module

,

Optical PC Led Street Light Module

,

Silicon Gasket LED PC Lens Module

Product Description

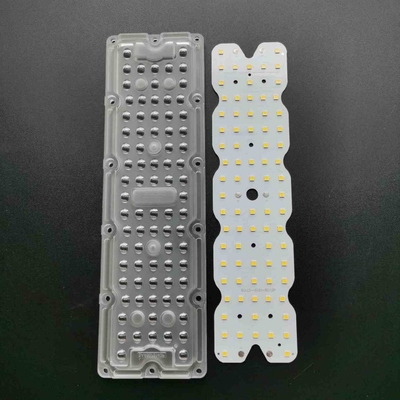

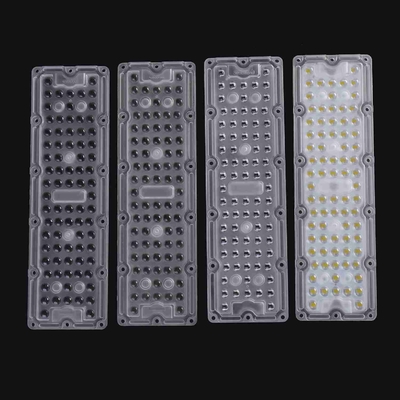

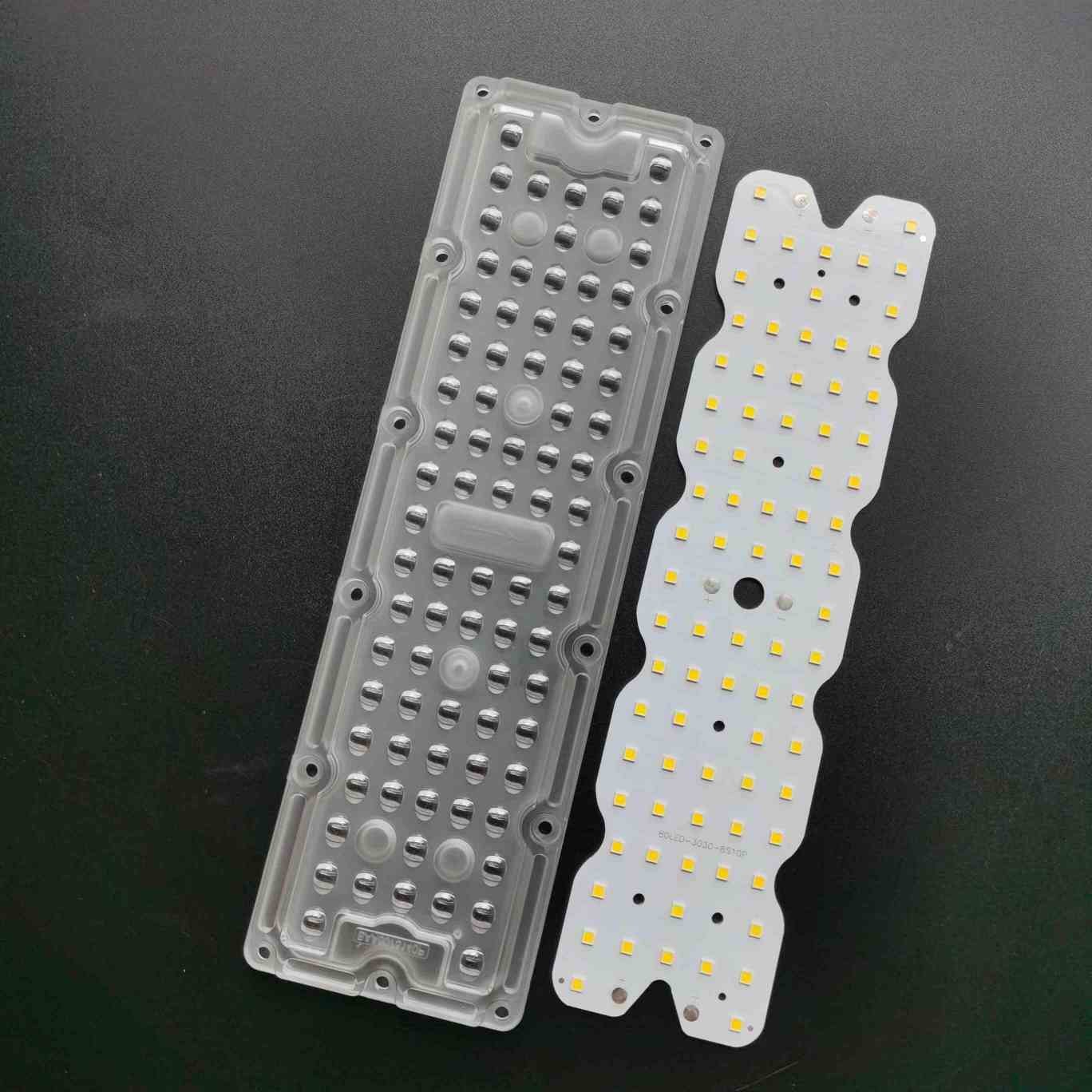

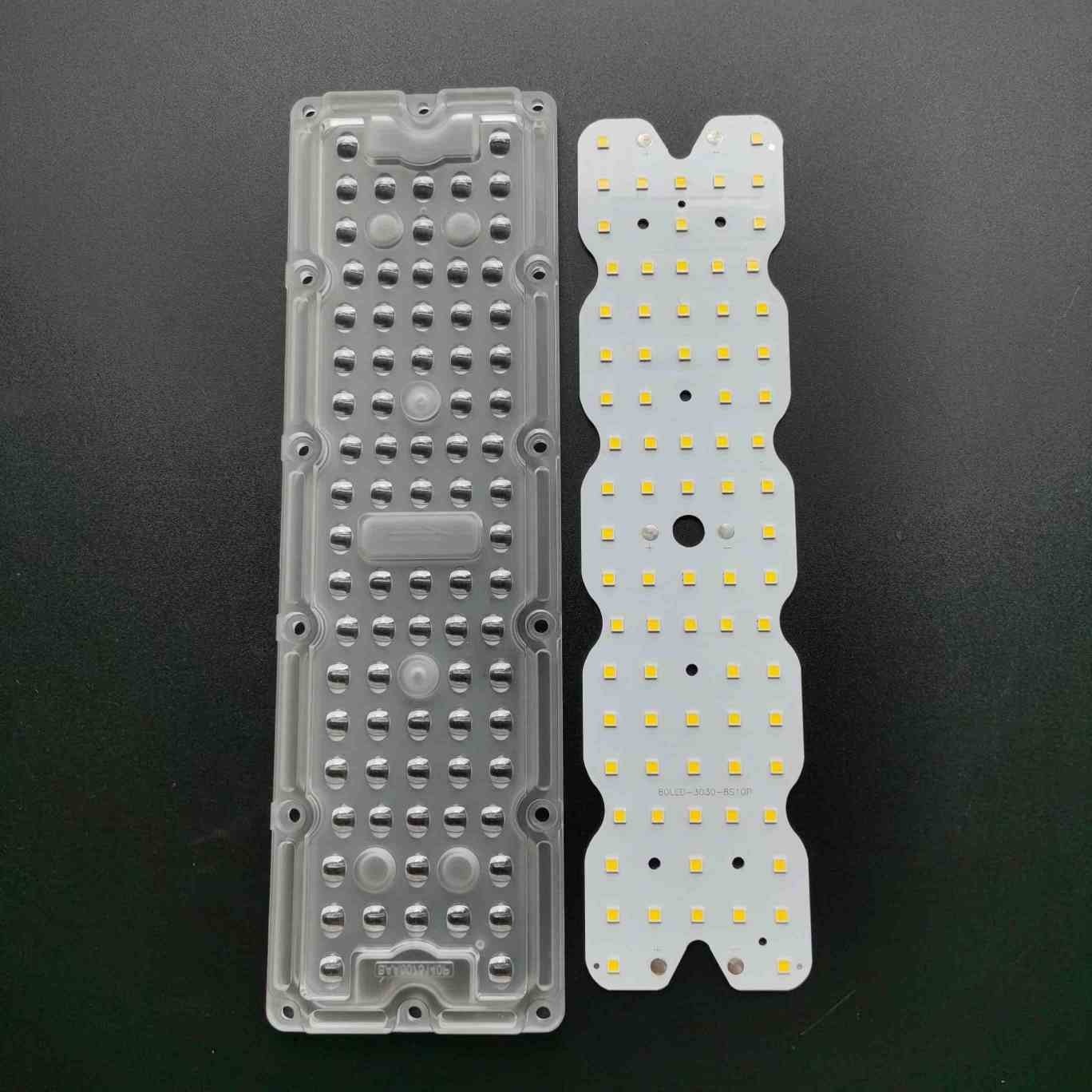

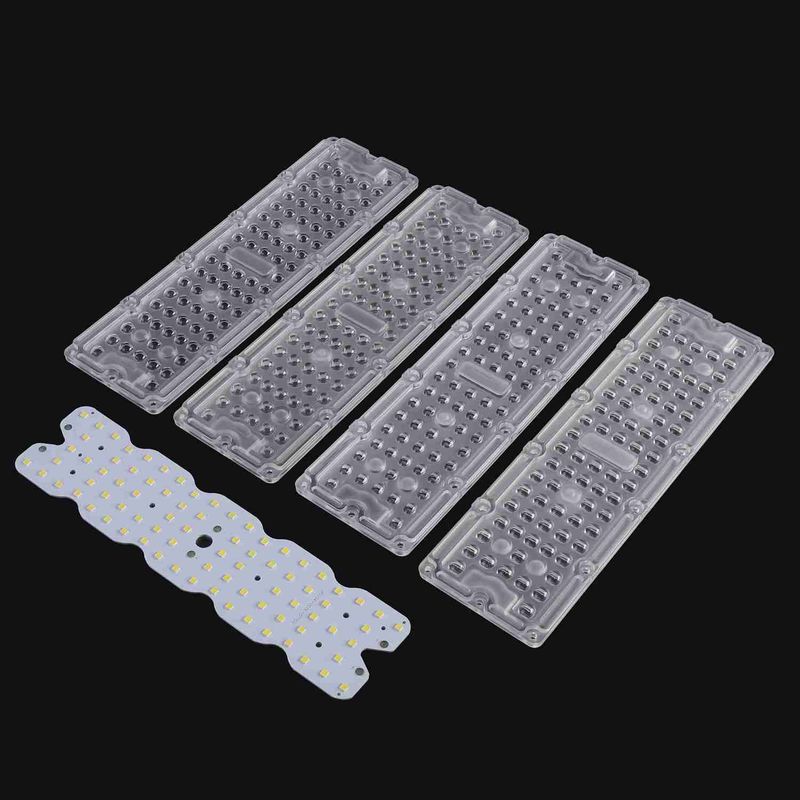

50w SMD 3030 Led Module , Street Light Module For Street Lamp

Product Feature:



1.We can according your require to design new Lens & Board.
2. This SKD 80 LED Array lens with PCB Module with PH3030 leds is best design power lamps like 50W for per module.

3. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.



Specifications:


1, Product Name

50w SMD 3030 Led Module , Street Light Module For Street Lamp

2, Model No

SUN-SL80-3030-90

3, Main parts

 Array lens , silicon gasket+PCB+LED+HEAT SINK

4, Lens Material

PC

5, Lens size

234X70x6.9MM

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm 150mA,6v
8,PCB Size 219.8x53.8x1.5mm
9. PCB Circuit 8 series 10 parallel

10, Sample

3-4 work day

11, Delivery

5-7  work days for 10000 sets

12, Angle

30/60/90/60x90/75x140degree

13, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

14, Main market

Europe, South America,North America, Asia






LENS Test :

 90 Degree Led Street Light Module Optical PC 50w SMD3030 Silicon Gasket 090 Degree Led Street Light Module Optical PC 50w SMD3030 Silicon Gasket 190 Degree Led Street Light Module Optical PC 50w SMD3030 Silicon Gasket 2





Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
