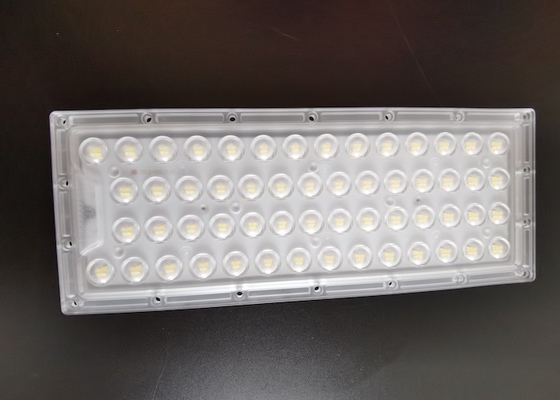

3030 SMD LED Street Light Module 140W/150W/180W TYPE 5 Angle Optical PC Components

Brand Name:	Sunshineopto
Model Number:	SUN-LD321X125-56-5050-TYPE5
MOQ:	10
Price:	negotiate
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram
Supply Ability:	5000pcs/months

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS,RoHS,CE

Product Name:

3030 SMD LED Street Light Module 140W/150W/180W TYPE 5 Angle Optical PC Components

Model No.:

SUN-LD321X125-56-5050-TYPE5

Lens Size:

320X125X8.1mm

PCB Size:

288x91x2mm

Circuit:

8 Series 28 Parallel

Beam Angle:

TYPE 5

LED Chip:

3030 SMD LED , 150mA, 6V, 140-150LM/W

Material:

Optical Grade PC

Packaging Details:

Cartons

Supply Ability:

5000pcs/months

Highlight:

3030SMD LED Street Light Components

28 Parallel LED Street Light Components

Optical PC LED Module Components

Product Description

3030SMD LED Street Light Components 28 Parallel 140W 150W 180W Optical PC

Product Overview

The 3030 SMD LED Street Light Module with power ratings of 140W, 150W, and 180W is engineered for high-performance outdoor lighting applications. Designed with Type 5 angle optical PC components, this module delivers superior light distribution, offering uniform and consistent illumination for large areas such as street lighting, highways, parking lots, and public spaces.This LED module is specifically designed for commercial and industrial applications, where energy-efficient, reliable, and high-brightness lighting is required. The 3030 SMD LEDs used in this module provide optimal luminous output, ensuring that urban areas and commercial spaces are well-lit and safe during the night. The Type 5 optical lens ensures minimal light loss while distributing the light at a wide angle across vast areas.Perfect for customers, including lighting manufacturers, contractors, and wholesalers, this LED module offers an affordable, energy-efficient, and long-lasting solution for outdoor lighting systems.

Key Features

Ideal for designing 100-200W power lamps with small footprint and high light output
Lowest total cost solution for replacing Metal Halide or HPS bulbs
The PC lens is designed to minimize light loss, directing the light precisely where it is needed and ensuring that the light is not wasted. The result is high efficiency and optimal light output over long distances.
High Luminous Efficiency with SMD 3030 LED,the 3030 SMD LEDs used in this module are known for their high luminous efficiency. With an output of 130-150lm/W, the 140W, 150W, and 180W configurations provide bright illumination while maintaining low energy consumption.
Industry-leading thermal management technology
Long Lifespan and Low Maintenance,the high-quality construction of the module guarantees durability and resilience even in harsh outdoor environments, where weather resistance and reliability are essential.
Operating temperature range: -35°C to +70°C
Mercury-free and lead-free construction
No UV radiation to protect eyesight
Directional lighting for dark sky compliance and reduced light pollution
Multiple optic lens options available for various beam angles

Technical Specifications

Product Name	224 pieces 3030SMD LED 140W 150W 180W TYPE5 angle module components
Model No.	SUN-LD321X125-56-5050-TYPE5

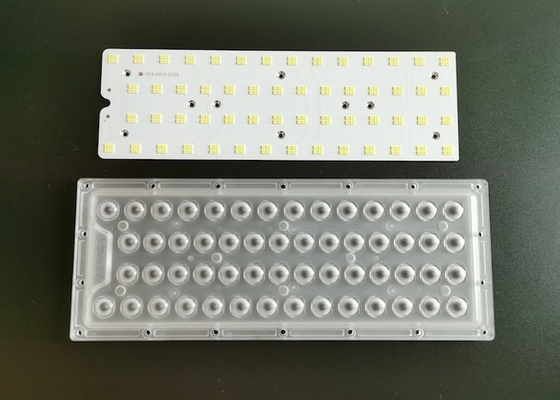

Main Parts	56 Array lens, silicon gasket, PCB, 3030 SMD LED
Lens Material	PC / vertical lens
Lens Size	320x125x8.1mm

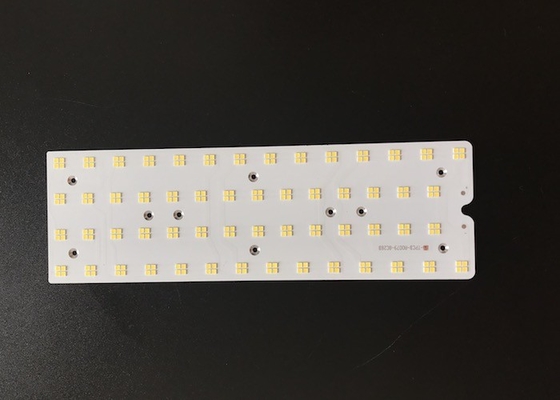

PCB Size	288x91x2mm
Circuit	8 series 28 parallel
Transmittance	91%
LEDs	Original package 3030 SMD LED, 140-150LM/W, 150mA, 6v
Beam Angles	Type3 / Type4 / Type5
Match LED	43030 SMD LED/56pcs5050 SMD LED
Quality Guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market	Europe, South America,North America, Asia

Lens Dimensions Drawing

PCB Board Size Drawing

Silicon Gasket Size

Applications

Street lighting, highway LED lamps, tunnel lamps, square lighting, road lamps, city lighting, parking spot lighting, track lighting fixtures, scenic areas, retail lighting, and other applications requiring high luminous flux.

Shipping & Delivery Information

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB \| EXW \| CIF \| CFR
Sample Availability	YES
Standard Delivery Time	3-4 working days
