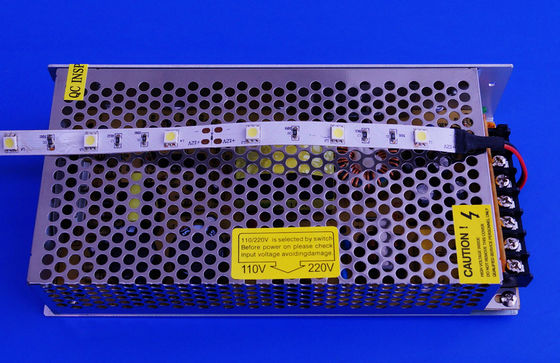

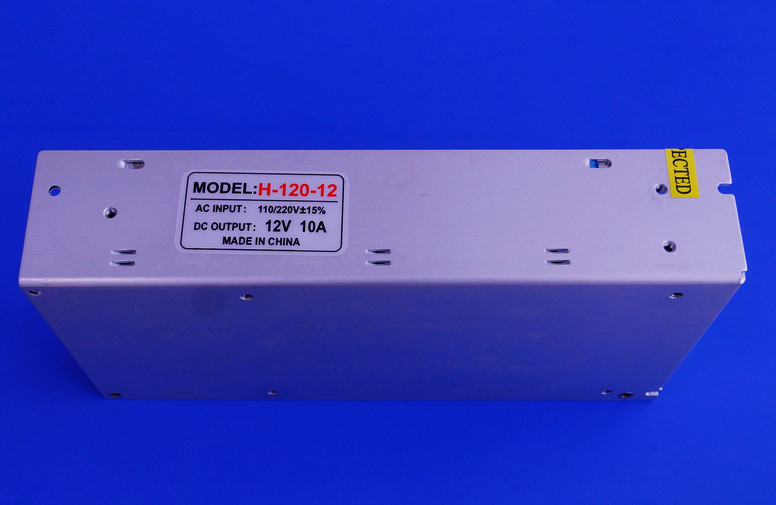

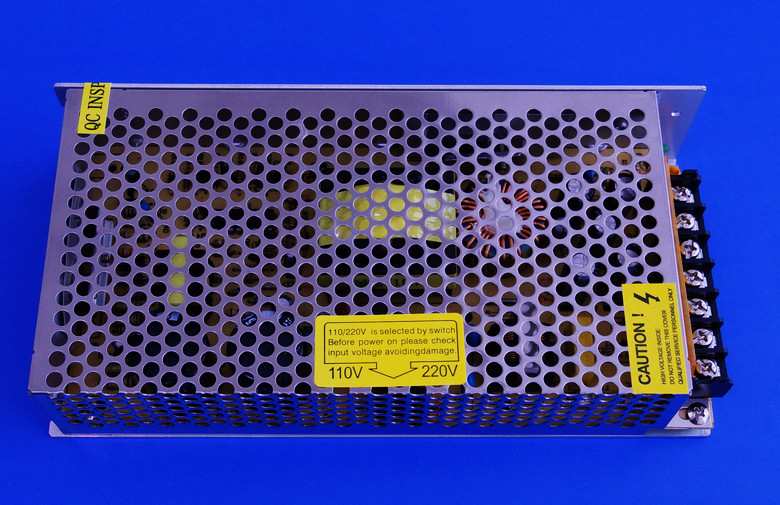

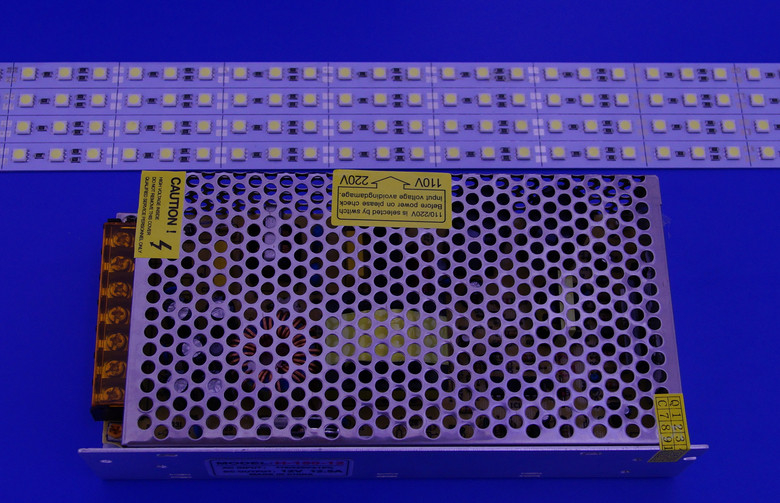

120 W LED Constant Voltage Driver , integrated Road Lighting high power led driver

120 W LED Constant Voltage Driver , integrated Road Lighting high power led driver

Led Light Driver

led constant voltage power supply

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

ROHS

Model Number:

S-120W-12V

Contact Us

Request A Quote
Product Details
Product Name:
120W Power Supply , LED Constant Voltage Driver For Road Lighting
Material:
Aluminum
Input Voltage:
AC110V/220V 50-60Hz
Output Voltage:
12V ±2%DC
Output Current:
10A±0.5%
Size:
198(L)*98(W)*42(H)mm
Certificate:
RoHS
Payment & Shipping Terms
Minimum Order Quantity
50PCS
Price
Need to negotiate
Delivery Time
3-4 WORK DAYS
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
10000pcs for one week
Product Description

120W Power Supply , LED Constant Voltage Driver For Road Lighting



Quick Detail:

Canning Material: Aluminum

Input voltage :AC110V/220V 50-60Hz

Output voltage :12V ±2%DC

Output current : 10A±0.5%

 Model No.:  S-120W-12V





Description:



1 Environmental Conditions

1.1 Operating Temperature: -10℃~+50℃, 20%~95%RH(without condensation)

1.2 Storage Temperature: -20℃~+85℃, 20%~95%RH(without condensation)

2.3 Relative Humidity: 0.02~0.05%/℃

3.4 Heat-dissipating Method: Natural Cooling / Fan Cooling / Blower Cooling

2. Input Features

2.1 Rated Input Voltage Range:220VAC

2.2 Input Voltage Range: 110/220VAC±15%

2.3 Input Frequency Range:50~60Hz(except Dc input)

2.4 Input Under-voltage Protection:115~150% interim mode

2.5 Input Under-voltage Recovery: Automatic recovery

2.6 Input Over-voltage Protection:115~150% interim mode

2.7 Input Over-voltage Recovery: Automatic recovery

2.8 Impact Current ≤1% (the highest input voltage full load)

2.9 Overall Efficiency ≤0.5% (rated input full load)

3. Output Features

3.1 Output Voltage Range: 12V±2%(Dual Outputs)

3.2 Output Current Range: 10A±0.5%(Dual Outputs)

3.3 Ripple & Noise(mVp-p)≤100 mVp-p

3.4 Rise Time≤50 ms

3.5 Output Delay≤S

3.6 Voltage Adjustment Rate≤0.5%

3.7 Load Adjustment Rate≤1%





Applications:



General Illumination

- Outdoor & Indoor architectural lighting

- Decorative lighting

- Flood lighting,cast light lamps

- Street lamp,Tunnel lamp

- Replace the old equipment





Specifications:



Product Name

120W Power Supply , LED Constant Voltage Driver For Road Lighting

Model No

S-120W-12V

 Material

Aluminum case

MOQ

50pcs

Size

198(L)*98(W)*42(H)mm

Package

G.W.:540g

Sample

3-5 work days

Delivery

7-10 work days

Certificate

ROHS

Quality guarantee

2 years warranty

 Main market

Europe, America, Asia





Shipping and delivery time:



DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days





Competitive Advantage:



1 .Output Over Current Protection: Current drooping type

2. Output Short Circuit Protection: IGBT

3. Output Over-voltage Protection: Soft start protection

4. Reliability Requirements

5 MTBF:50,000 HOURS

6 Annual Repair Rate<0.3%
