Place of Origin:
Shenzhen,China
Brand Name:
Sunshineopto
Certification:
SGS,ROHS
Model Number:
SUN-SL66
Contact Us

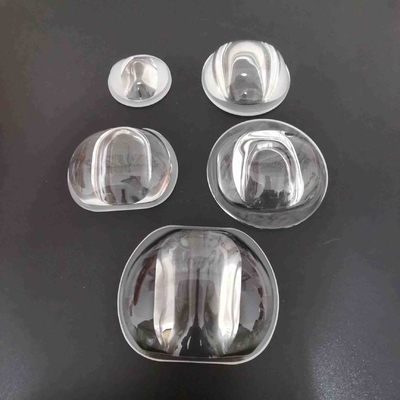

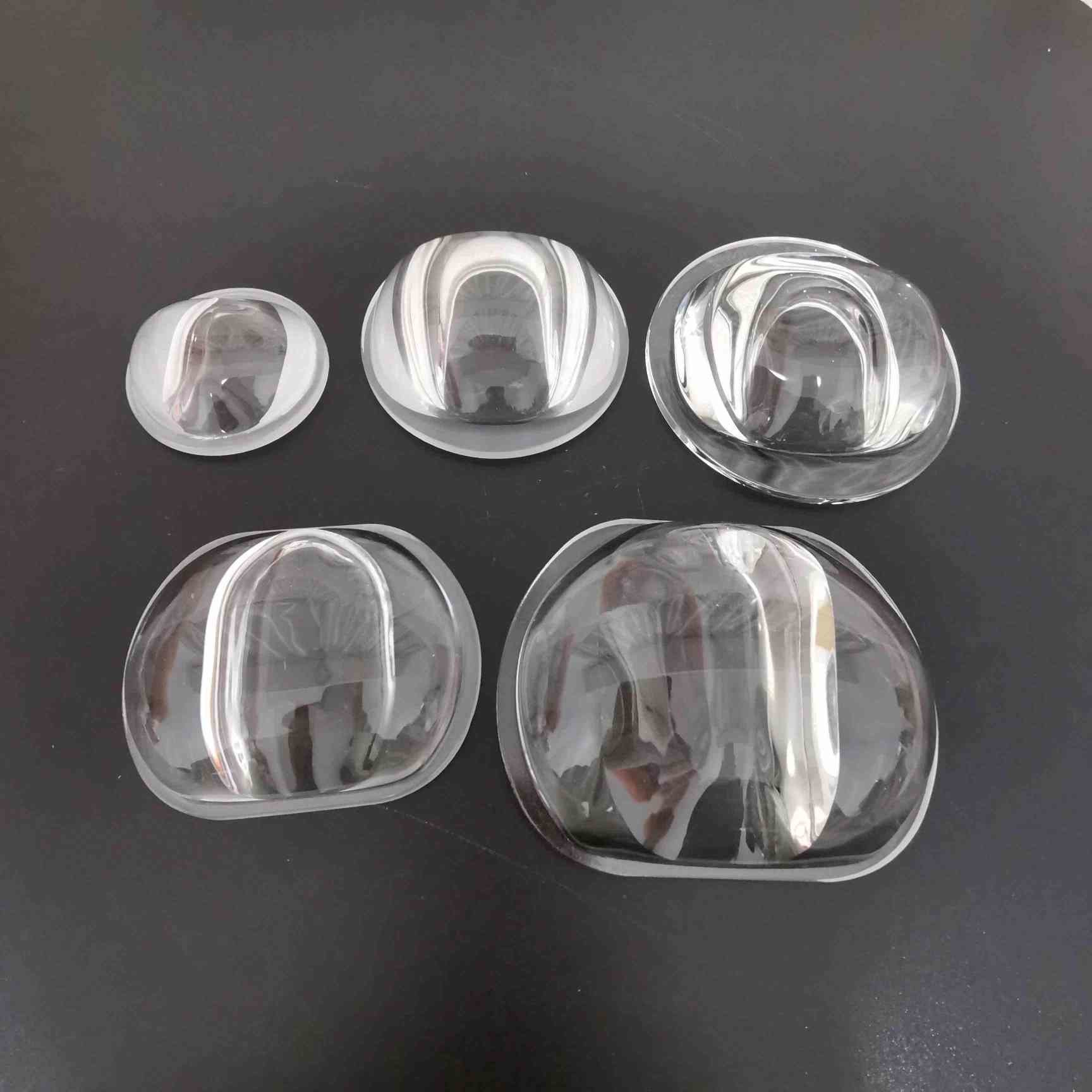

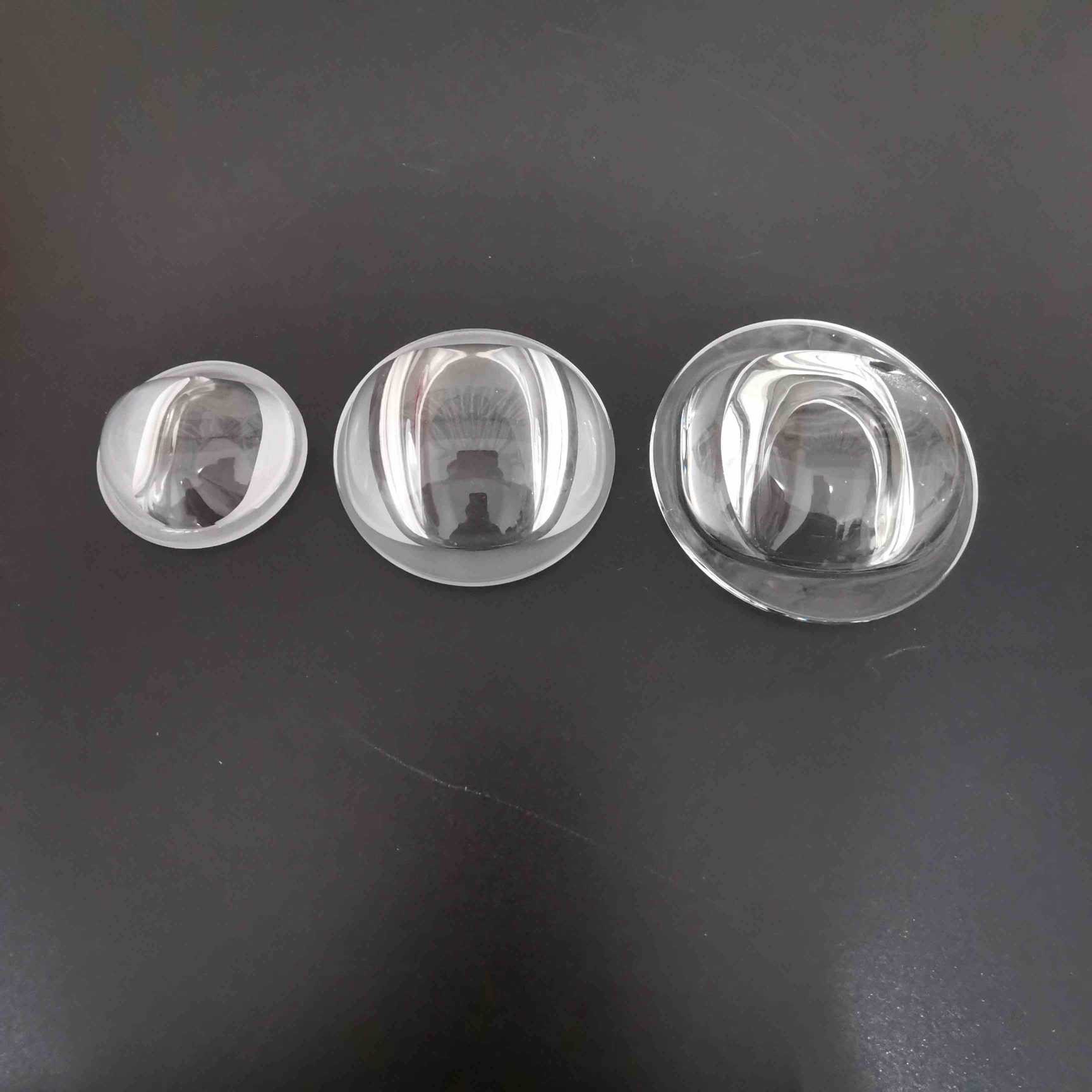

Glass led light Lens , LED Street light Lens For 30W Leds
Quick Detail:
1.Dia 66.2mm Height 20.5mm
2.Angle 120x75 degree
3.materials : borosilicate glass
4.Match for 10W-30W LEDs

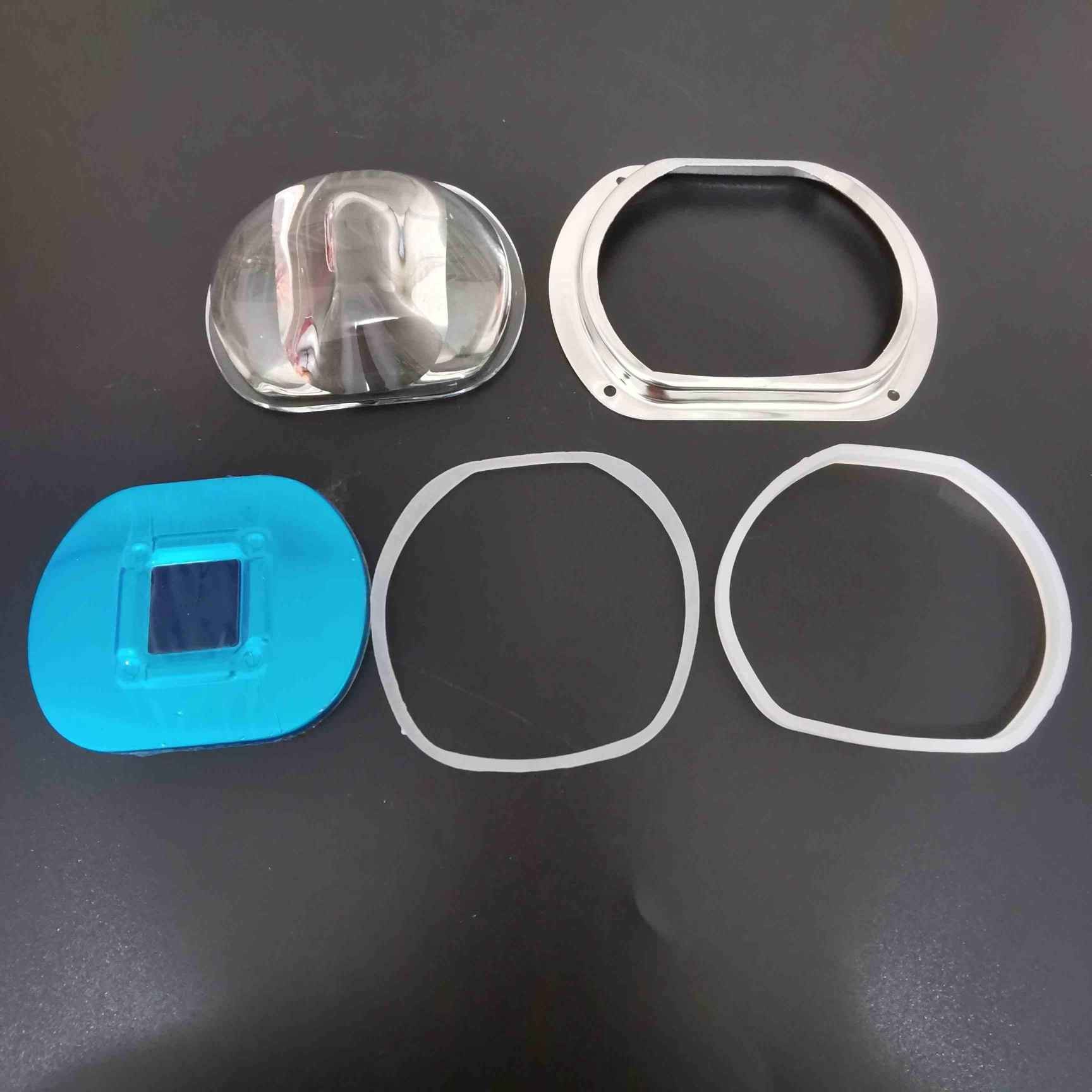

5.with metal holder, silicon gasket
6.Chips package size <49x30mm
Specifications:
|
Model : |
HH-SL66 |
|
Dimension |
Dia 66.2mm Height 20.5mm |
|
materials : |
borosilicate glass |
|
Beam Angle |
120X75 degree |
|
Accessories |
with metal holder,silicon gasket |
|
Led chips |
For 10w-30w COB LEDs |
|
Applications |
For Led street light, tunnel light |
Dimension:
Beam Pattern:
Description
Applications:
This transparent COB LED Glass lens is mainly used for Led street light, tunnel light,park light, solar light.
Competitive Advantage:
1. One-Stop Service of led components and 6 years specializing in High Power LED industry
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules for led street light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
