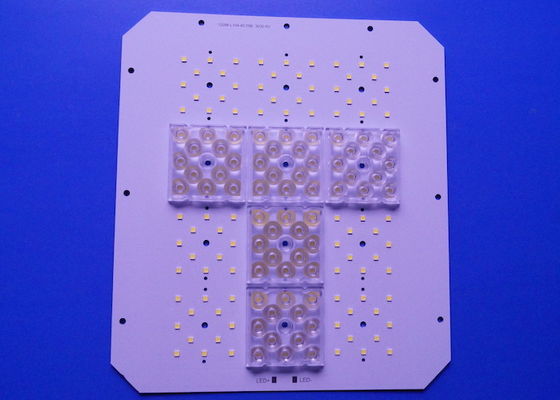

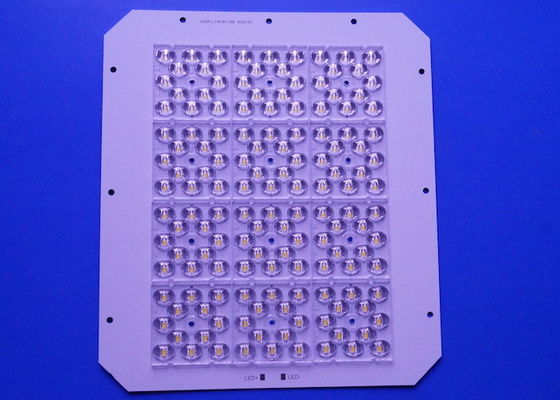

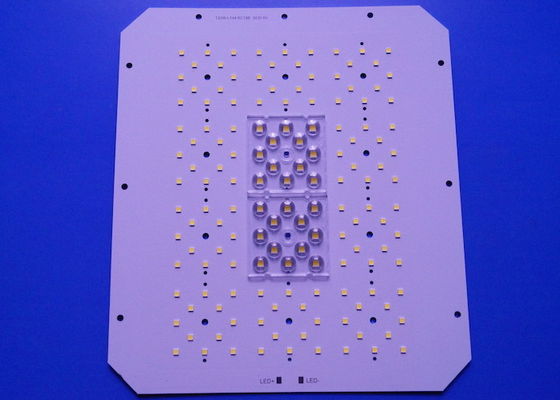

Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Custom Made 120W 144 LED 3030 SMD 8S18P 48V PCB Board With 5050SMD LED LENS | Model No. | SUN-LD120W-144 |
|---|---|---|---|
| Beam Angle | 15/30/60/90/60X60/90X90/143X50/156X68/150X75 Degree | LENS Size | 50x50mm |
| Material | Optical Grade PC | LED CHIP | PH Smd3030 Led 6v 1w |
| Circuit Of PCB | 8 Series 18 Parallel, 48v Output | PCB Size | 216x245x1.5mm |
| Highlight | 120W LED PCB board,8S18P LED PCB board,Custom smd led pcb board |
||
Product Description
Custom made 120W 144 LED 3030 SMD 8S18P 48V PCB board with 5050SMD LED LENS
Quick Detail:
PCB Board:
PCB SIZE:216x245x1.5mm
Layer:1
Board thickness:1.5mm
Solder mask: white
Thermal Conductivity:1w/m.k
Test way:100% test
LED CHIP: 3030 SMD LED 6V
Material: Aluminium
Dense array of 144 led lens/Small footprint, high light output
LED LENS Details:
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
|
1, Product Name |
Custom made 120W 144 LED 3030 SMD 8S18P 48V PCB board with 5050SMD LED LENS |
|
2, Model No |
SUN-LD120W-144 |
|
3, Main parts |
PCB board with led + lens |
|
4, Lens Material |
PC |
|
5, Lens size |
50X50MM |
|
6, Transmittance |
91% |
|
7,LEDS |
3030SMD LED |
|
8, Sample |
5-7 work day |
|
9, Delivery |
7-10 work days for 10000 sets |
|
10, Angle |
15/30/60/90/60X60/90X90/143X50/156X68/150X75 degree |
|
11, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
12, Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
|
DHL/UPS/TNT/FEDEX |
4-5 working days |
|
EMS |
10-15 working days |
|
HK Post Air Mail Register |
15-18 working days |
|
Trade Terms |
FOB|EXW|CIF|CFR |
|
Sample availability |
YES |
|
Delivery time |
3-4 working days |
LENS Dimensions :
PCB SIZE:
Related for 144 LED module:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
