Factory Custom 60 Degree LED Lens Array for 3030/5050/7070 LED Modules – Optical Grade PC/PMMA High Efficiency Lens

Brand Name:	Sunshineopto
Model Number:	SUN-D153X96-28H1-60
MOQ:	100
Price:	Negotiate
Packaging Details:	cartons
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

shenzhen,China

Certification:

SGS,CE,RoHS

Model No.:

SUN-D153X96-28H1-60

Kits:

LED Lens+Gasket+PCB Board

PCB Size:

132x75x1.5mm

Lens Size:

153.5x96.5x8.4mm

Lens Angle:

60 Degree

PCB Circuit:

7 Series 8 Parallel

Supply Ability:

10000pcs/month

Highlight:

60 Degree LED Lens Array

153.596.58.4MM LED Module Lens

7 Series 8 Parallel High Power LED Lens

Product Description

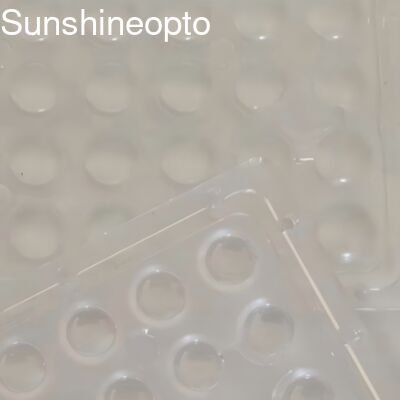

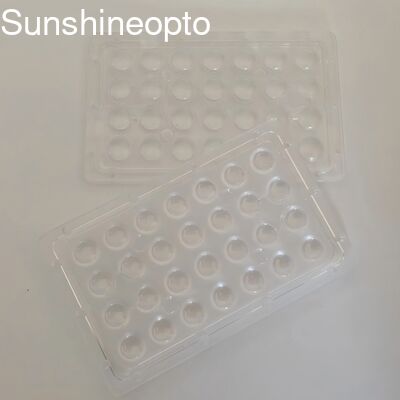

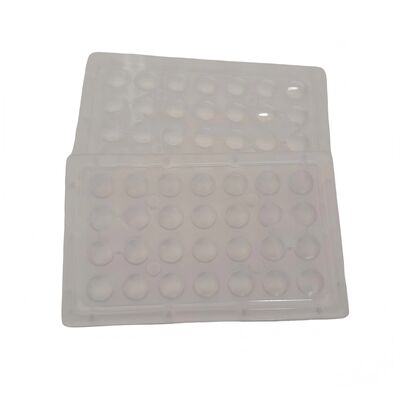

Factory Custom 60 Degree LED Lens Array for 3030/5050/7070 LED Modules – Optical Grade PC/PMMA High Efficiency Lens

Product Overview

This 60 degree LED lens array is specially designed for 3030, 5050 and 7070 mid‑to‑high power SMD LED modules, delivering precise symmetrical beams for flood lights, high bay lights, high mast lights, stadium lights and other outdoor area lighting. Made from optical‑grade PC or PMMA, it can be customized in terms of array layout, number of lenses, pitch and mounting style, making it an ideal choice for luminaire manufacturers and project contractors for OEM/ODM designs and retrofit projects.

Product Specifications

Model No.	SUN-D153X96-28H1-60
Kits	LED Lens with Gasket
Lens Size	153.5 × 96.5 × 8.4 mm
Lens Angle	60 degree
PCB Size	132 × 75 × 1.5 mm
PCB Circuit	7 series 8 parallel
Compatible LEDs	3030 SMD 1W 6V/56pcs, 5050 SMD, or 7070 SMD LEDs
Input Voltage (DC)	DC 42V
Available Beam Angles	12°, 30°, 60°, 30×70°, and other custom options

Key Features

A 60 degree beam angle offers a good balance between intensity and coverage, providing high center illuminance while covering a wide area, which suits high bays, floodlights, high mast and sports lighting.
The same lens platform can work with 3030, 5050 and 7070 LED packages, enabling customers to switch LED types and power levels on one luminaire platform and thus reducing R&D and inventory costs.
Made from optical‑grade PC or PMMA with optional frosted or clear surface finishes, the lens offers high transmittance and excellent UV and yellowing resistance for long‑term outdoor operation.
Factory customization is available for 2×2, 3×3, 4×4, 6×1, 6×2 and other layouts, including pitch, overall size and mounting hole positions, enabling customers to create differentiated products quickly.
With proper array and power configuration, the lens array can be used in warehouses, factories, sports venues, highways, plazas, ports and other mid‑to‑high mounting height applications.

Product Images Drawing

Technical Drawings

Factory custom lens size specifications:

Factory custom lens angle specifications:

Product Applications

LED high bay and industrial lighting
Outdoor flood and façade lighting
High mast and stadium lighting
Port and yard illumination
Warehouses and logistics centers
Squares, parking lots and general area lighting

Packaging & Shipping Informations

Shipping Method	Delivery Time
DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB, EXW, CIF, CNF
Sample Availability	Yes
Standard Delivery Time	3-4 working days
