PC SMD5050 LED Street Light Components 28 LED 100W For 14 Parallel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 28 LED 5050 SMD 100W Public Places Lighting Accessories With Heat Sink | Model No. | SUN-LD236X70-5050-90x120 |
|---|---|---|---|
| Beam Angle | 90x120 Degree | LENS Size | 236X70X8.3mm |
| Material | Optical Grade PC | LED CHIP | 5050 SMD LED |
| Tranmittance | 91% | Application | High Bay Light/Street Light |
| PCB Size | 218x44x1.5mm | Circuit For PCB Board | 2 Series 14 Parallel, Output 48v |
| Highlight | SMD5050 LED Street Light Components,PC LED Street Light Components,14 Parallel LED Street Light Module |
||
Product Description

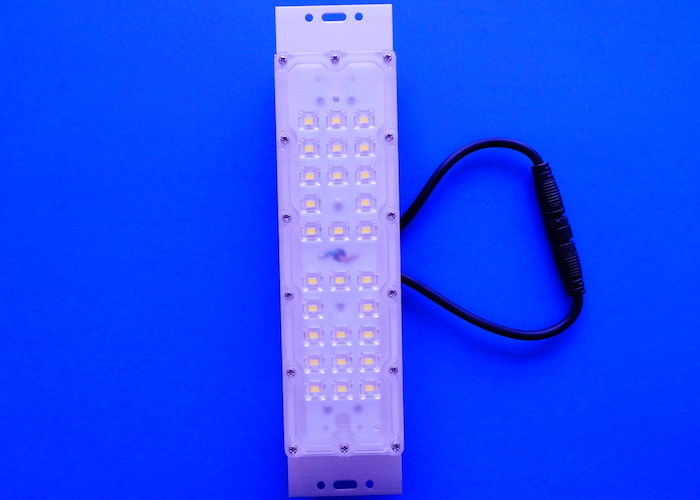

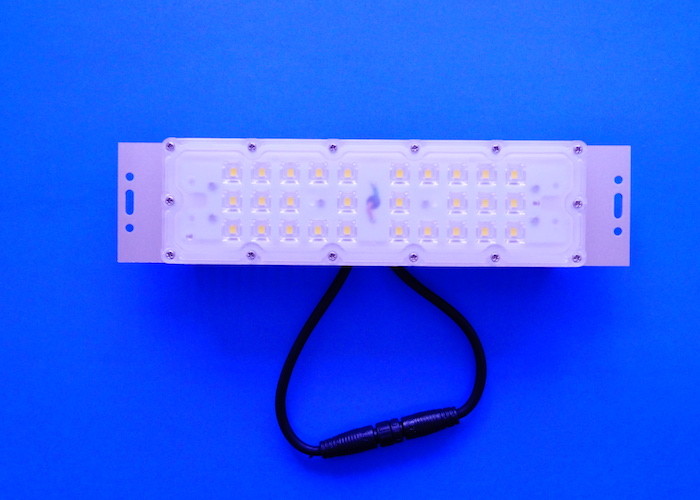

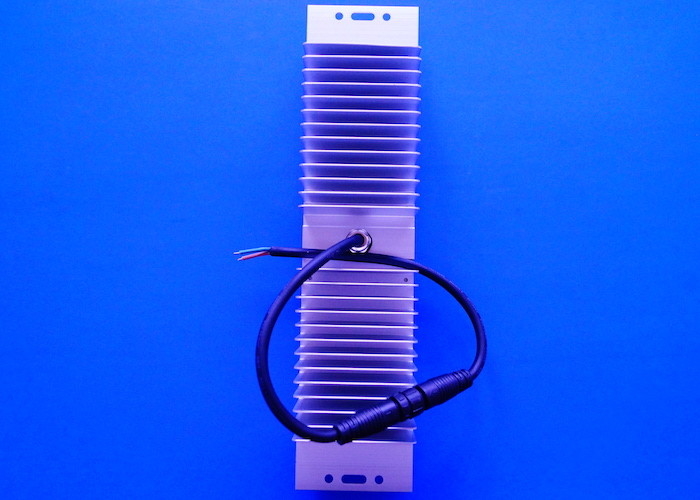

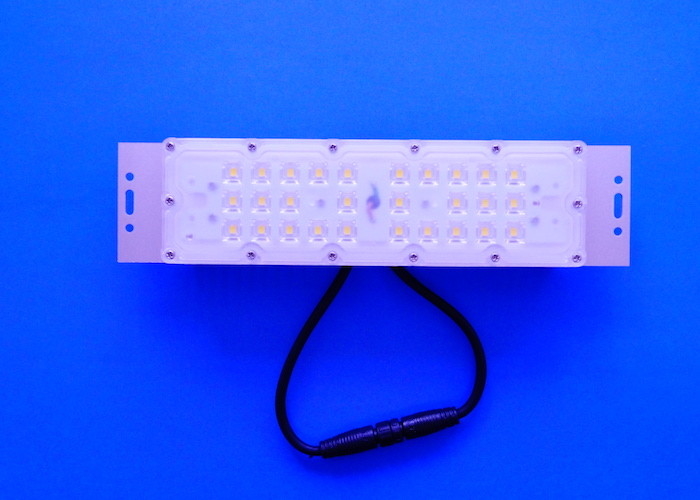

28 LED 5050 SMD 100W Public Places Lighting accessories with Heat sink
Quick Detail:
Model No:SUN-LD236X70-5050-90x120
Material: PC
Beam Angle : 90x120
Lens size:236X70X8.3mm
PCB size:218x44x1.5mm
Circuit: 2 series 14 parallel
Match LED: 5050 SMD LED
Small footprint, high light output
Features :
- This SKD 28 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 100W,110W and so on .
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
- Optic lenses are available for projects that need smaller beam angles, like 80X150/ 90/60/90X120/130 degree/ TYPE3 and TYPE4.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
|
1, Product Name |
28 LED 5050 SMD 100W Public Places Lighting accessories with Heat sink |
|
2, Model No |
SUN-SL236X70-5050-90x120 |
|
3, Main parts |
28 Array lens , silicon gasket+PCB+ 5050SMD LED |
|
4, Lens Material |
PC |
|
5, Lens size |
236X70MM |
|
6, Transmittance |
91% |
|
7,LEDS |
5050 SMD,24V, 160mA |
|
8, Sample |
3-4 work day |
|
9, Delivery |
5-7 work days for 10000 sets |
|
10, Angle |
TYPE5 30 Degree |
|
11, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
12, Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
|
DHL/UPS/TNT/FEDEX |
4-5 working days |
|
EMS |
10-15 working days |
|
HK Post Air Mail Register |
15-18 working days |
|
Trade Terms |
FOB|EXW|CIF|CFR |
|
Sample availability |
YES |
|
Delivery time |
3-4 working days |
LENS Dimensions :
Dimensions for silicon gasket:
Beam pattern:
PCB board size:
