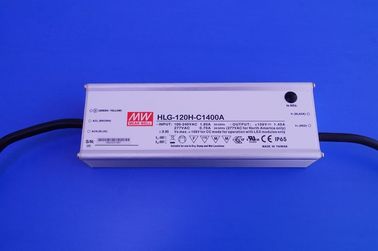

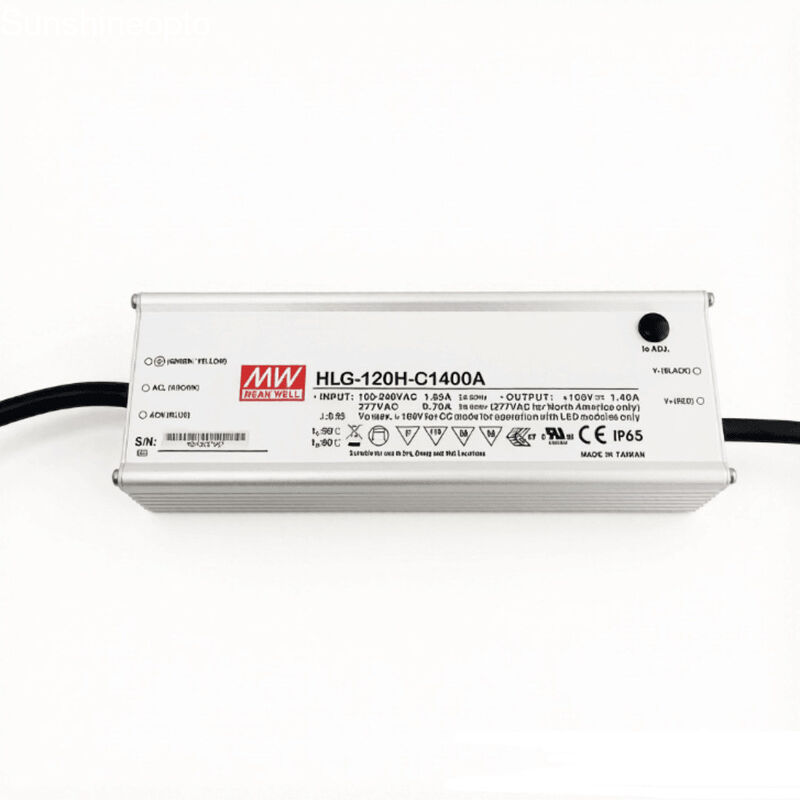

Waterproof 120W Meanwell Driver Constant Current LED Power Supply with Aluminum Case

Brand Name:	MEAN WELL
Model Number:	HLG-120H-C1400A
MOQ:	10pcs
Price:	Need to negotiate
Packaging Details:	carton
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ROHS,CE,TUV,CER,EMC

Document:

HLG-120H-C-spec.pdf

Power:

120W

Input Voltage:

AC100-240V

Power Factor:

> 0.9

Current Available:

350mA/500mA/700mA/1050mA/1400mA

Material:

Aluminum Case

Available:

50W,100W,150W,200W,300W

Supply Ability:

1000pcs for one week

Highlight:

waterproof LED driver

Constant Current LED driver

Product Description

Waterproof 120W Meanwell Driver Constant Current LED Power Supply

High-performance constant current LED power supply with aluminum casing, designed for reliable operation in various environmental conditions.

Key Features

Constant Current mode output
Metal housing with Class I design
Built-in active PFC function
IP67 /IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer;
3 in 1 dimming; Timer dimming
Typical lifetime>62000 hours
7 years warranty

Product Specifications

MODEL		HLG-120H-C350□	HLG-120H-C500□	HLG-120H-C700□	HLG-120H-C1050□	HLG-120H-C1400□
OUTPUT	RATED CURRENT	350mA	500mA	700mA	1050mA	1400mA
	RATED POWER	150.5W	150W	150.5W	155.4W	151.2W
	CONSTANT CURRENT REGION Note2	215~430V	150~300V	107~215V	74~148V	54~108V
	CURRENT ADJ. RANGE	Adjustable for A/B-Type only (via built-in potentiometer)
	CURRENT ADJ. RANGE	175~350mA	250~500mA	350~700mA	525~1050mA	700~1400mA
	CURRENT RIPPLE	8.0% max. @rated current
	CURRENT TOLERANCE	±5%
	SET UP TIME	1000ms / 115VAC 500ms / 230VAC
INPUT	VOLTAGE RANGE	90~305VAC, 127~431VDC (Please refer to "STATIC CHARACTERISTIC" section)
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR (Typ.)	PF ≥0.98/115VAC, PF ≥0.96/230VAC, PF ≥0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
	TOTAL HARMONIC DISTORTION	THD < 20% @load ≥50%/115VAC, 230VAC; @load=75%/277VAC (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
	EFFICIENCY (Typ.)	94%	94%	94%	94%	93.50%
	AC CURRENT (Typ.)	1.6A / 115VAC 0.8A / 230VAC 0.7A / 277VAC
	INRUSH CURRENT (Typ.)	COLD START 50A(peak)/600μs measured at 50% load at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC

Technical ocumentation

Download Product Specification Sheet (PDF)

Applications

General illumination
Outdoor & indoor architectural lighting
Decorative lighting
Flood lighting and cast light lamps
Street lamps and tunnel lighting
Equipment replacement solutions

Shipping & Delivery Informations

Shipping Method	Delivery Time
DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB \| EXW \| CIF \| CFR
Sample Availability	YES
Standard Delivery Time	3-5 working days

FAQ

Q:What services can we provide?

A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency: USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken: English,Chinese,Spanish,Russian

Q:Can the factory provide samples?

A:Samples are usually available for checking dimensions, mounting method, optical performance, and luminaire compatibility. Sample policy depends on the project and order quantity.

Q:What are the typical MOQ and lead time?

A:MOQ and lead time depend on whether the product is standard or customized. Standard versions usually have shorter lead times, while custom models require confirmation based on tooling, testing, and production scheduling.

Q:How to deal with the faulty?

A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
