160lm 150mA LED Street Light Retrofit Kits 100W SMD3030 Array Lens
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 100W SMD3030 Array Lens LED Street Light Retrofit Kits 160lm 150mA | Model No. | SUN-LD253x120-36-60 |
|---|---|---|---|
| Angle | 60 Degree | Lens Dimension | 253x120x10.6mm |
| Lens Material | Optical Grade PC | LED CHIP | 3030 SMD LED, 150-160lm/w 150mA,6v |
| Tranmittance | 91% | Application | High Bay Light/Street Light |
| Accessory | Gasket And Lens+PCB+ 3030SMD LED+Heat Sink | PCB Size | 223x93x1.5mm |
| PCB Circuit | 8 Series 18 Parallel | Heat Sink Size | 300x70x40mm |
| Other Angle | 90/150/140x100/117x52/151x81degree | ||
| Highlight | 160lm LED Street Light Retrofit Kits,SMD3030 LED Street Light Retrofit Kits,Street Light led retrofit kits |
||
Product Description

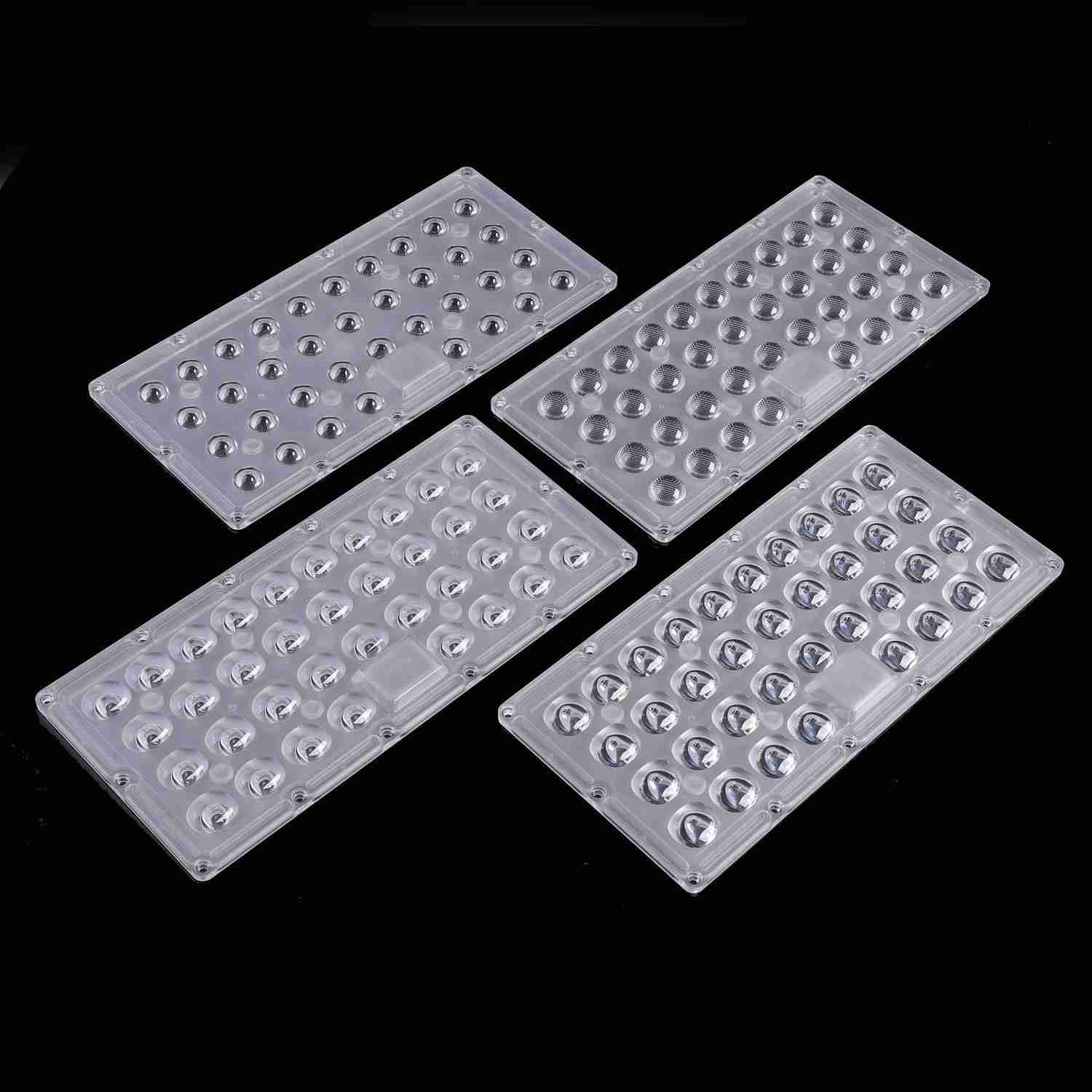

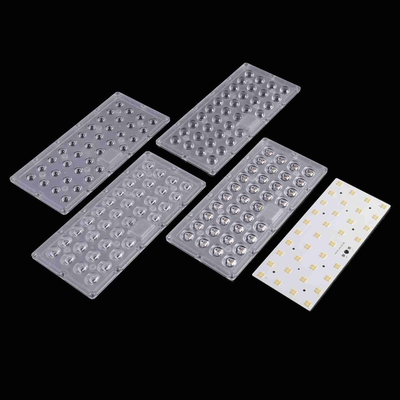

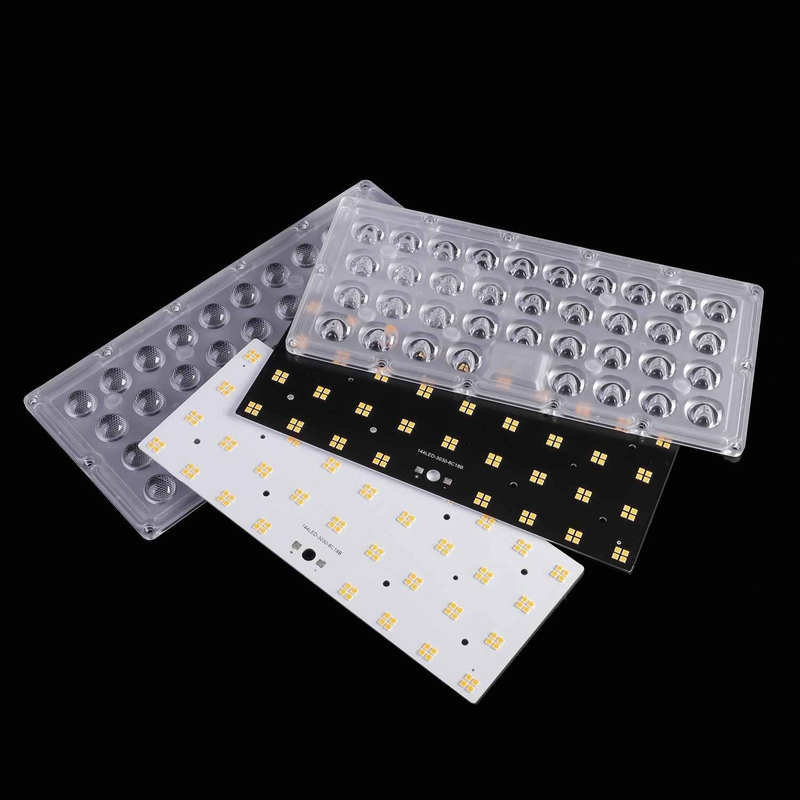

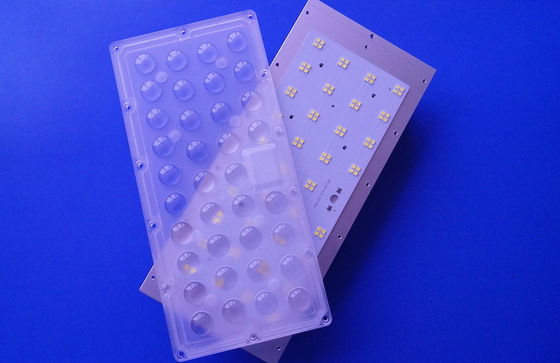

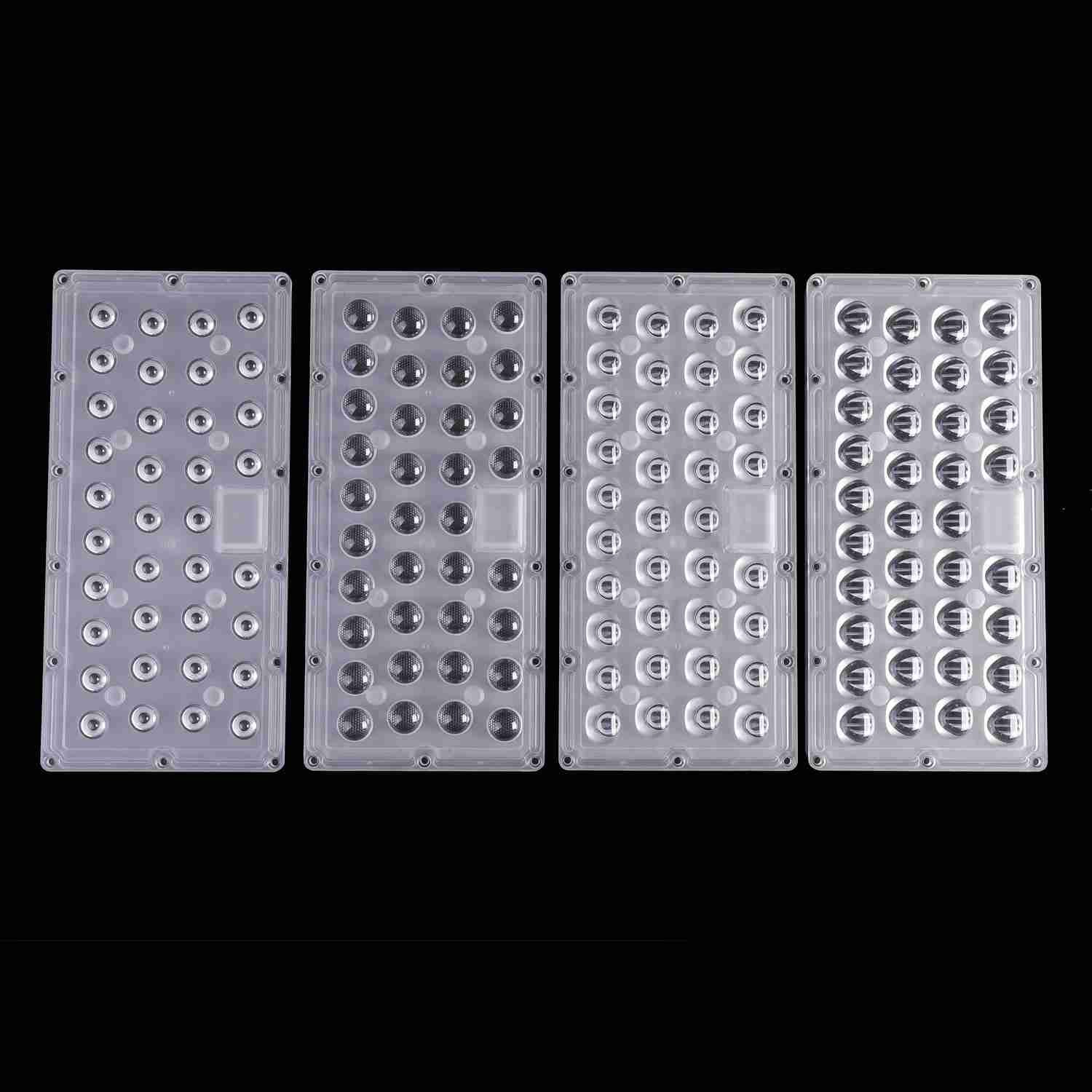

100W SMD3030 Array Lens LED Street Light Retrofit Kits 160lm 150mA
Product Feature:
1. This led street light module has a small size can match a variety of lamp housing .
2. Whole led light module use Ph3030 leds ,High quality leds guarantee long life .
3. We can according your require to design new Lens & Board.
4. This SKD 36 LED Array lens with PCB Module is best design power lamps like 100W for per module.
Specifications:
|
1, Product Name |
100W SMD3030 Array Lens LED Street Light Retrofit Kits 160lm 150mA |
|
2, Model No |
SUN-LD253x120-36-60 |
|
3, Main parts |
Array lens , silicon gasket+PCB+LED+HEAT SINK |
|
4, Lens Material |
PC |
|
5, Lens size |
253x120x10.6MM |
|
6, Transmittance |
91% |
|
7,LEDS |
3030 SMD LED, 140-150lm 150mA,6v |
|
8, Sample |
3-4 work day |
|
9, Delivery |
5-7 work days for 10000 sets |
|
10, Angle |
60/90/150/140x100/117x52/151x81degree |
|
11, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
12, Main market |
Europe, South America,North America, Asia |
| Model No. | Power(W) | Angle(Degree) | Lens size(mm) | PCB size(mm) | Circuit |
|
SUN-LD3x12-3030-90x90 |
30 | 90x90 | 250x74 |
228x53x1.5
|
6S6P |
|
SUN-LD3x12-3030-60x140 |
30 | 60x140 | 120x110 |
89x89x1.5 |
6S6P |
|
SUN-LD4X12-3030-60X60 |
40 | 60x60 | 250x74 |
228x53x1.5
|
6S8P |
|
SUN-SL56W-3030-30/60/90 |
50 | 30/60/90 |
256.6x78.6 |
233x55x1.5
|
7S8P |
|
SUN-SL64W-3030-30/60/90 |
50 | 30/60/90 | 236x70 |
219.1x53.54x1.5 |
8S8P |
|
SUN-SL72-3030-60/90
|
50 | 60/90 | 250x74 |
226x57.9x1.5 |
8S9P |

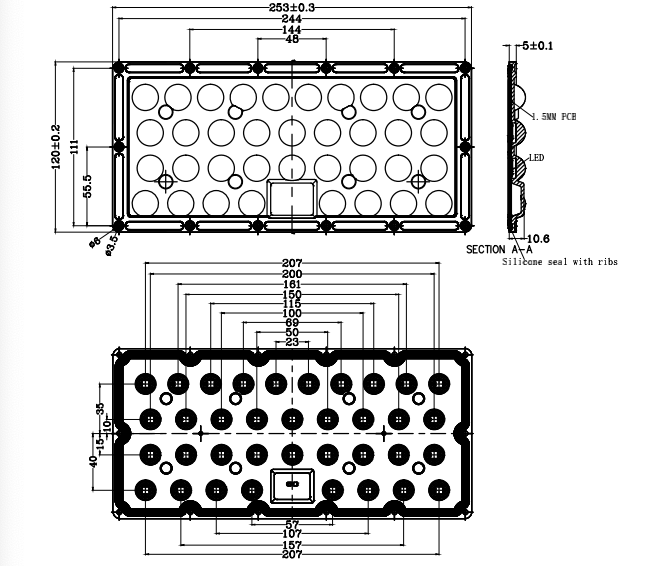

LENS Dimensions :
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
