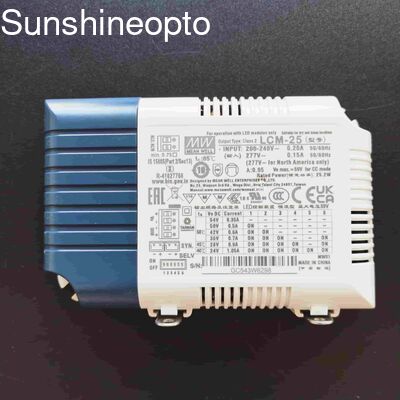

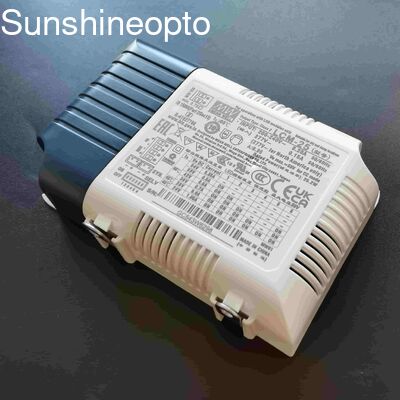

25W Dimmable Constant Current LED Driver with Aluminum Case for Indoor Lighting

Brand Name:	MEAN WELL
Model Number:	LCM-25
MOQ:	10
Price:	Need to negotiate

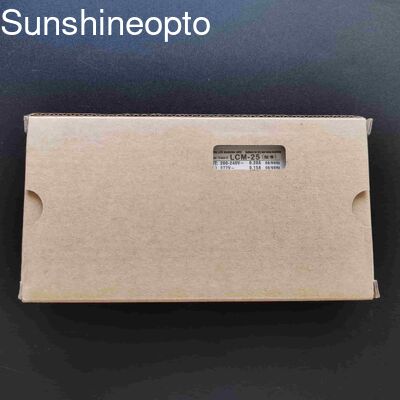

Packaging Details:	carton
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,CE,TUV,CER,EMC

Document:

Power:

18.9W/25.2W

Input Voltage:

AC180-277V

Material:

Aluminum Case

Warranty:

3 Years

Supply Ability:

10000pcs/month

Highlight:

120W LED Power Supply

Waterproof LED Power Supply

IP65 outdoor led power supply

Product Description

25W Dimmable Constant Current LED Driver with Aluminum Case for Indoor Lighting

Product Overview

The LCM-25 series is a 25W AC/DC constant current mode output LED driver featuring multiple levels selectable by DIP switch. Operating from 180-277VAC, it offers current levels ranging between 350mA and 1050mA. With efficiency up to 86% and fanless design, this series operates within -30℃ to +85℃ case temperature under free air convection. The LCM-25 includes dimming functions and synchronization capabilities for optimal design flexibility in LED lighting systems.

Key Features

Constant Current mode output with multiple levels selectable by DIP switch
Plastic housing with Class II design
Built-in active PFC function
Standby power consumption <0.5W
Functions: 3 in 1 dimming (dim-to-off); synchronization up to 10 units
3 years warranty

Technical Specifications

MODEL	LCM-25

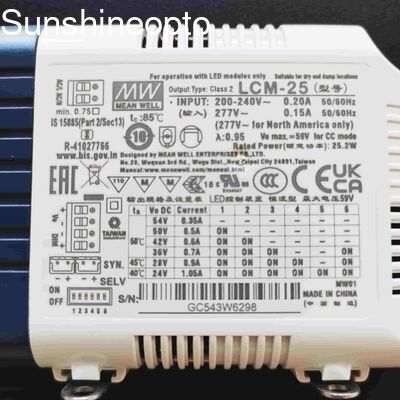

CURRENT LEVEL	Current level selectable via DIP switch, please refer to "DIP SWITCH TABLE" section
	350mA	500mA	600mA	700mA(default)	900mA	1050mA
RATED POWER	18.9W	25.2W
DC VOLTAGE RANGE	6 ~ 54V	6 ~ 50V	6 ~ 42V	6 ~ 36V	6 ~ 28V	6 ~ 24V
OPEN CIRCUIT VOLTAGE (max.)	59V			41V
CURRENT RIPPLE	5.0% max. @rated current
CURRENT TOLERANCE	±5%
SETUP TIME	500ms / 230VAC
VOLTAGE RANGE	180 ~ 277VAC 254 ~ 392VDC (Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE	47 ~ 63Hz
POWER FACTOR (Typ.)	PF≥0.94/230VAC, PF≥0.91/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)

TOTAL HARMONIC DISTORTION	THD<20%(@load≥50%/230VAC; @load≥75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)

EFFICIENCY (Typ.)	86%
AC CURRENT (Typ.)	0.17A/230VAC 0.15A/277VAC
INRUSH CURRENT (Typ.)	COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER	26 units (circuit breaker of type B) / 44 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT	<0.5mA / 240VAC
STANDBY POWER CONSUMPTION	<0.5W

Applications

LED indoor lighting
LED office lighting
LED architectural lighting
LED panel lighting

Shipping & Payment Informations

Shipping Method	Delivery Time
DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB \| EXW \| CNF
Sample Availability	YES
Standard Delivery Time	3-4 working days
